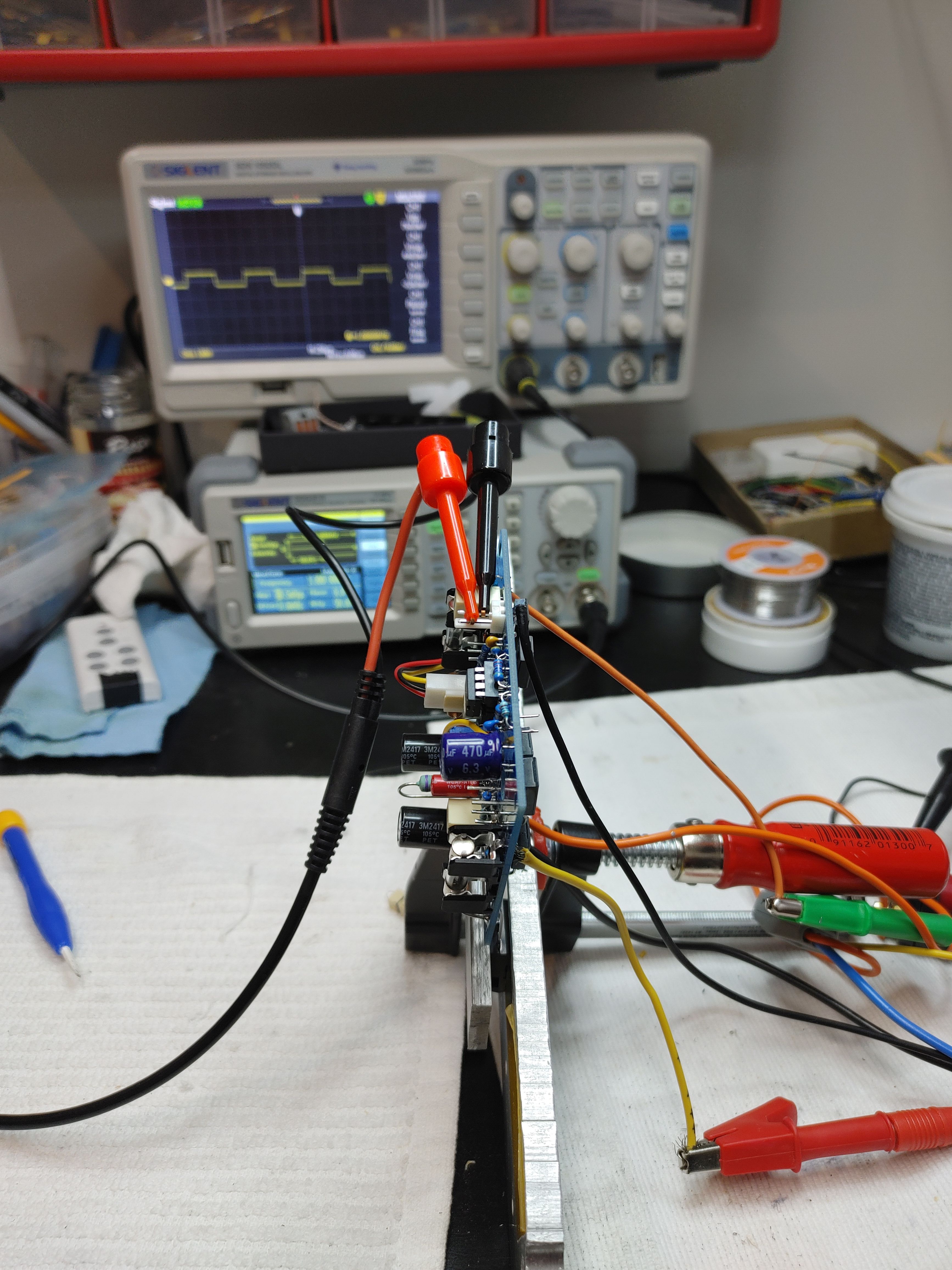

4. board tested
5. lt1056.bjt.20.ok
6. lt1223 bjt fft

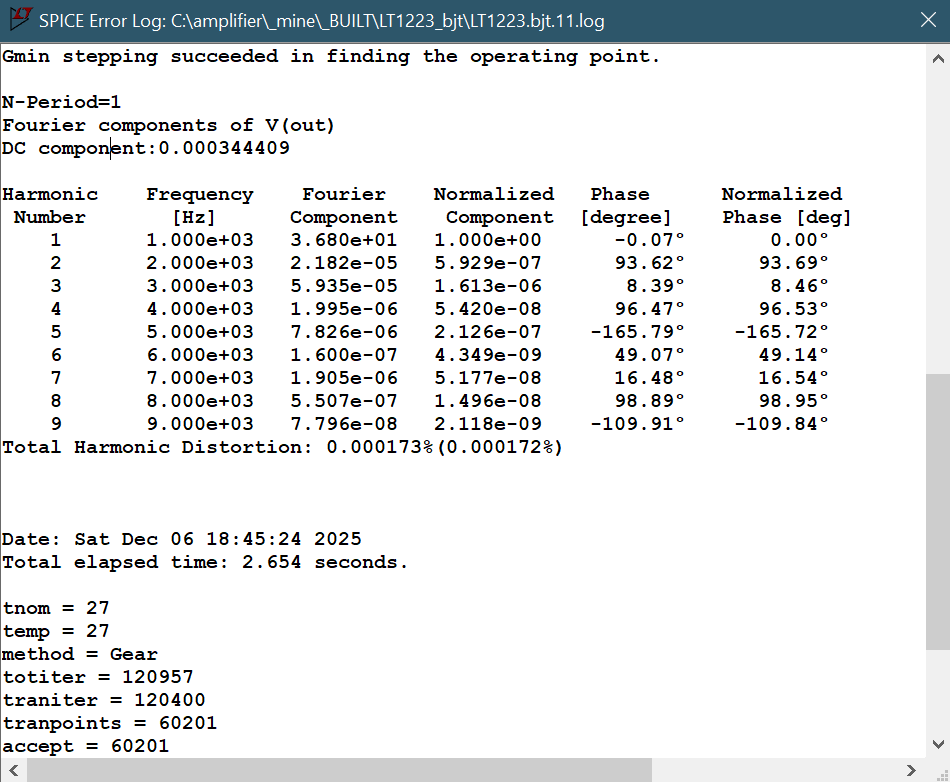

7. lt1223 bjt thd

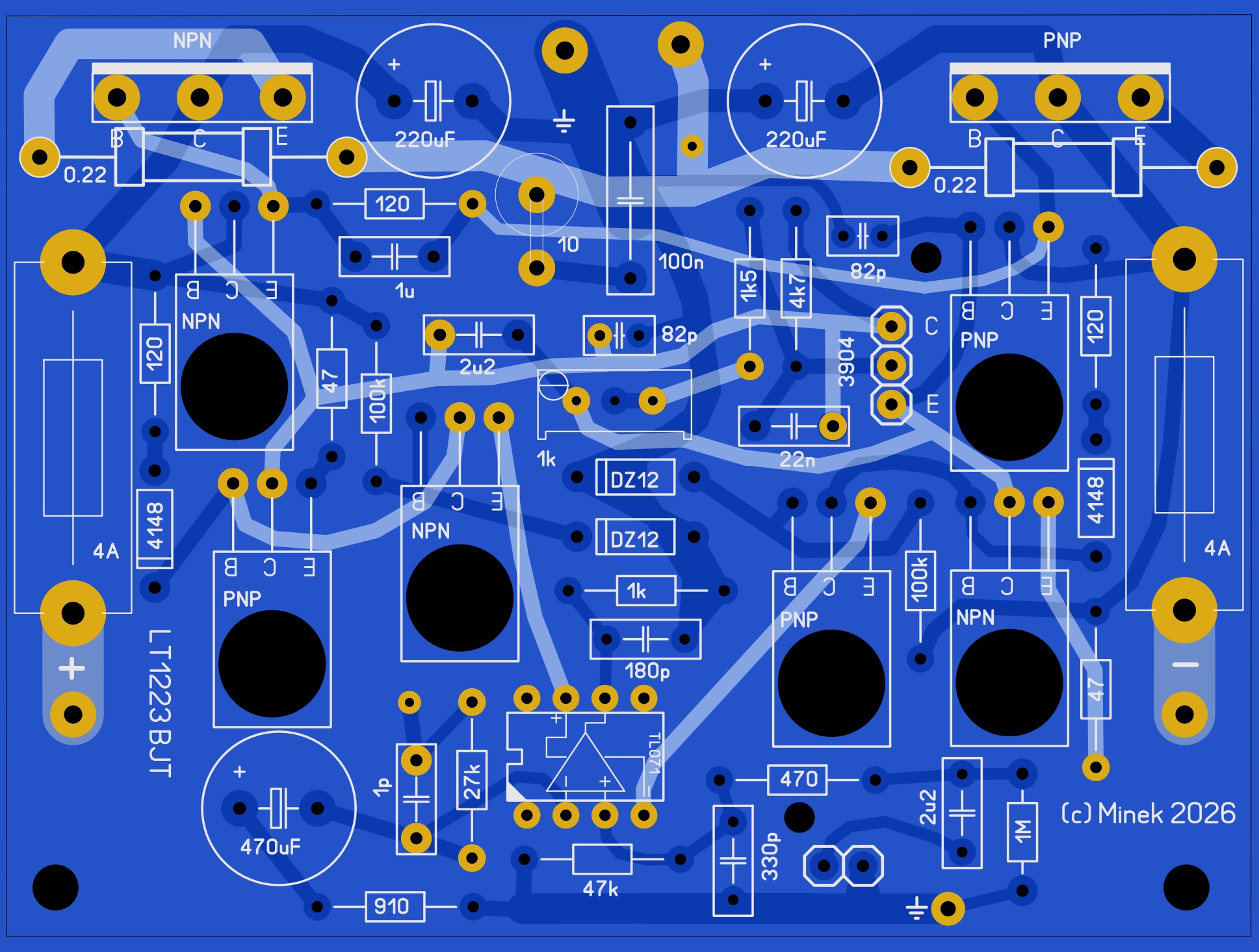

8. Pcb LT1223.bjt.14

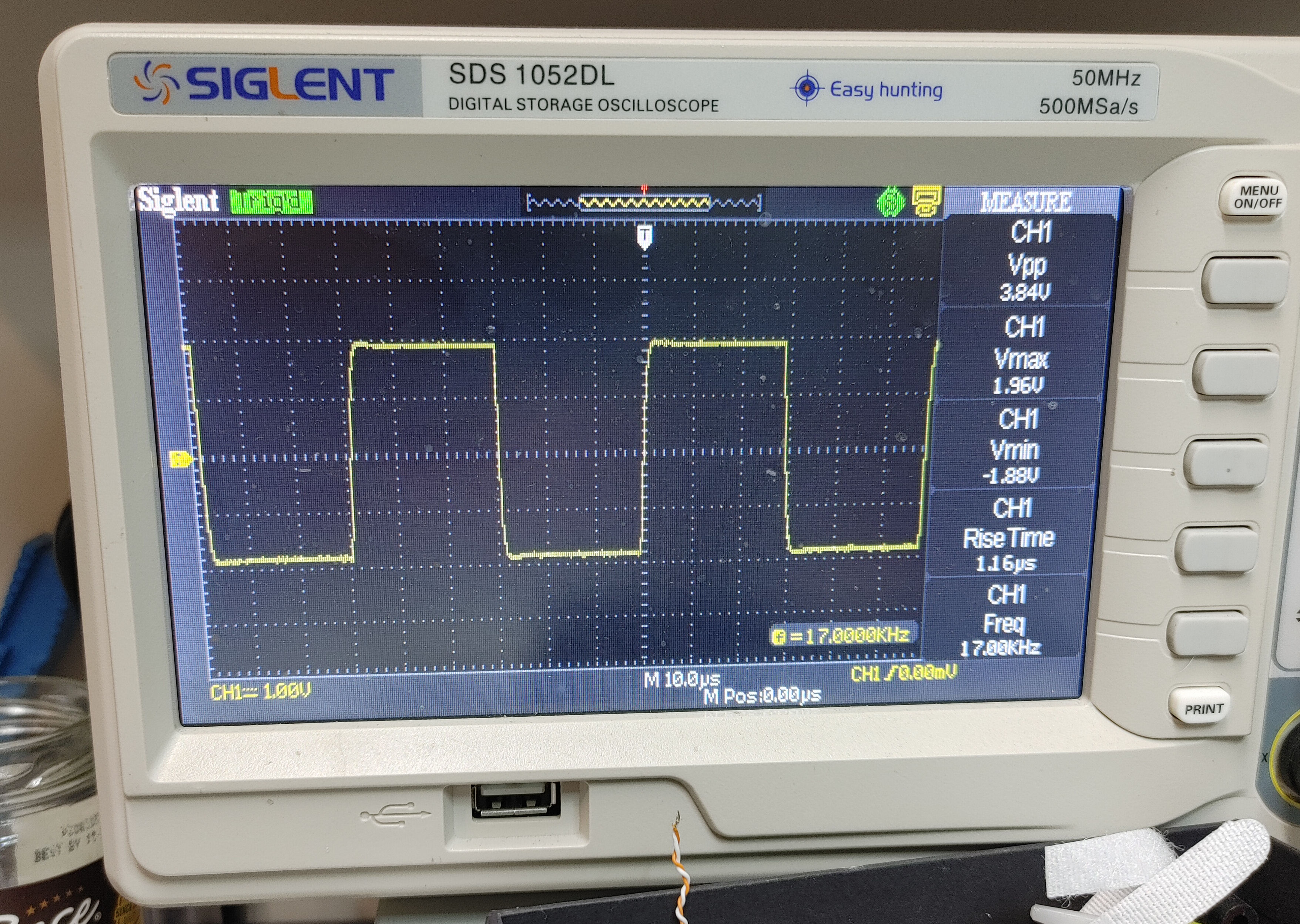

9. squares 17khz
10. squares 57khz.
11. lt1223 schematic bjt
LT1056 BJT AmplifierJanuary 2026 |
| Status | Built |
|---|---|
| Circuit family | Alexander-style / BJT |
| Photographs | 11 full-size gallery images |
| Downloads | 1 local design and reference files |
The successful bipolar-output revision of the high-speed experiment. Replacing the LT1223 with an LT1056 and revising compensation produced stable hardware; the archive includes sine- and square-wave tests, the PCB work, Gerbers and LTspice files.
|

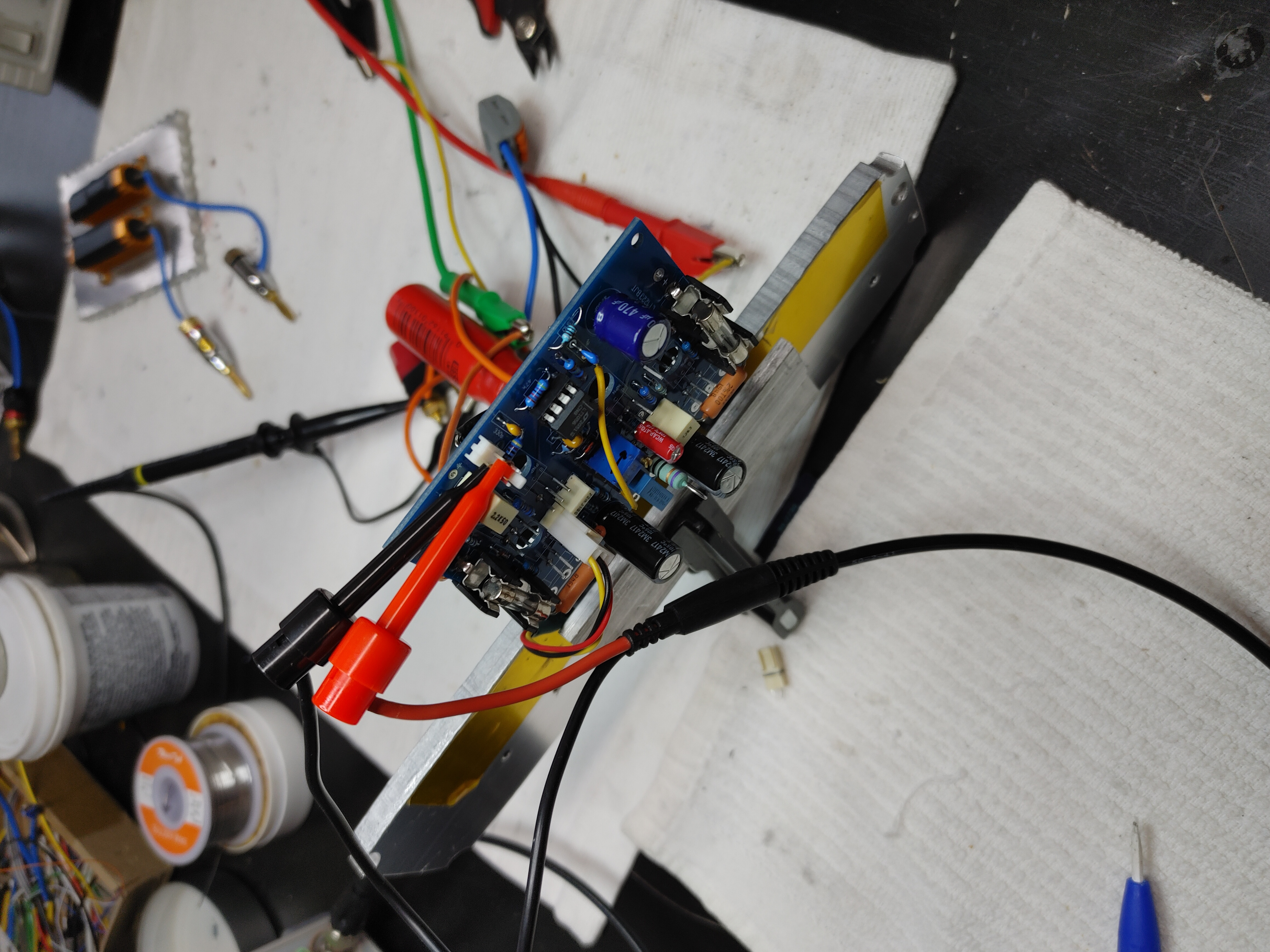

1. 20260110 142454 |
2. 20260110 142502 |

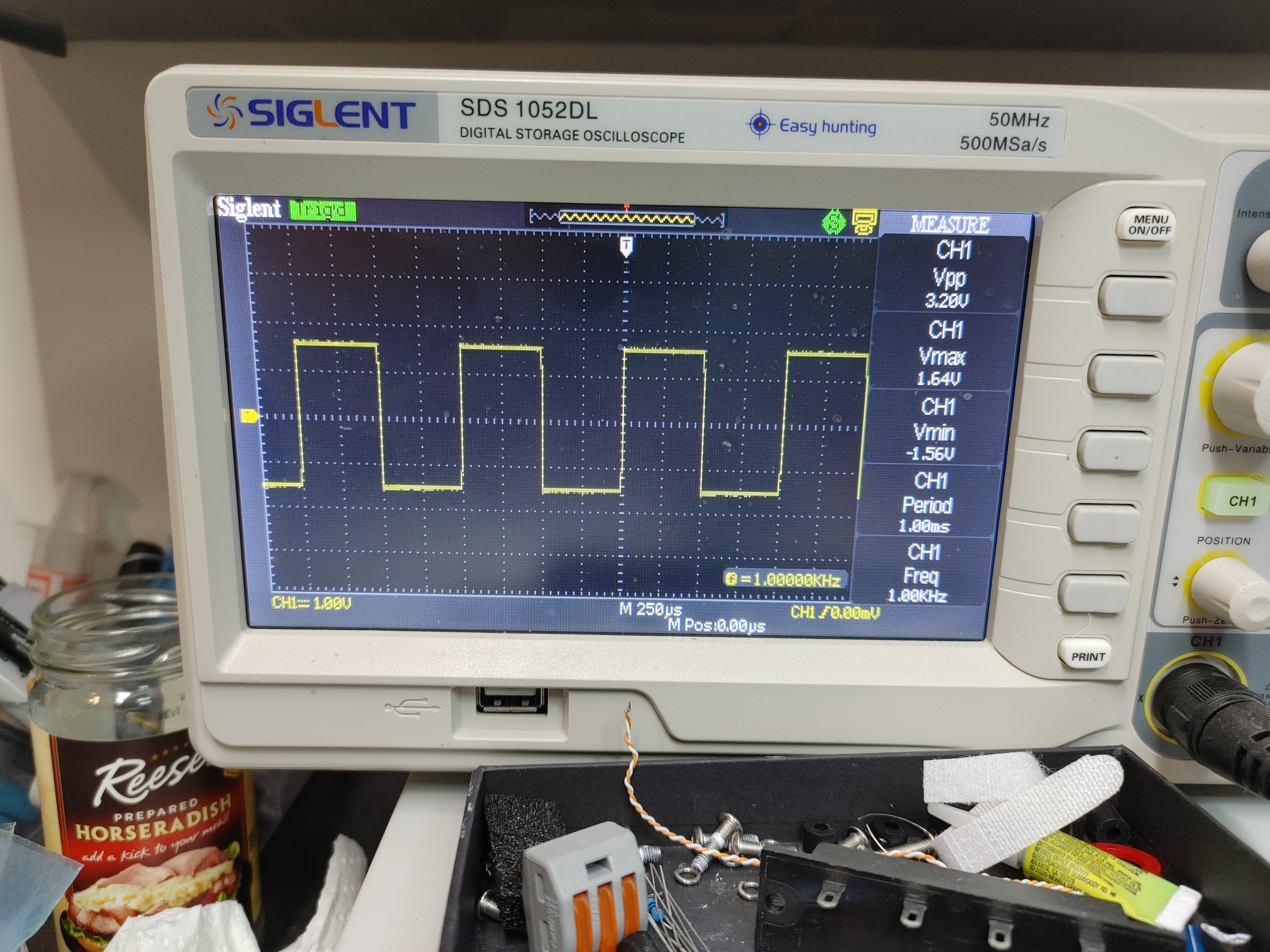

3. 20260110 142517 HDR |

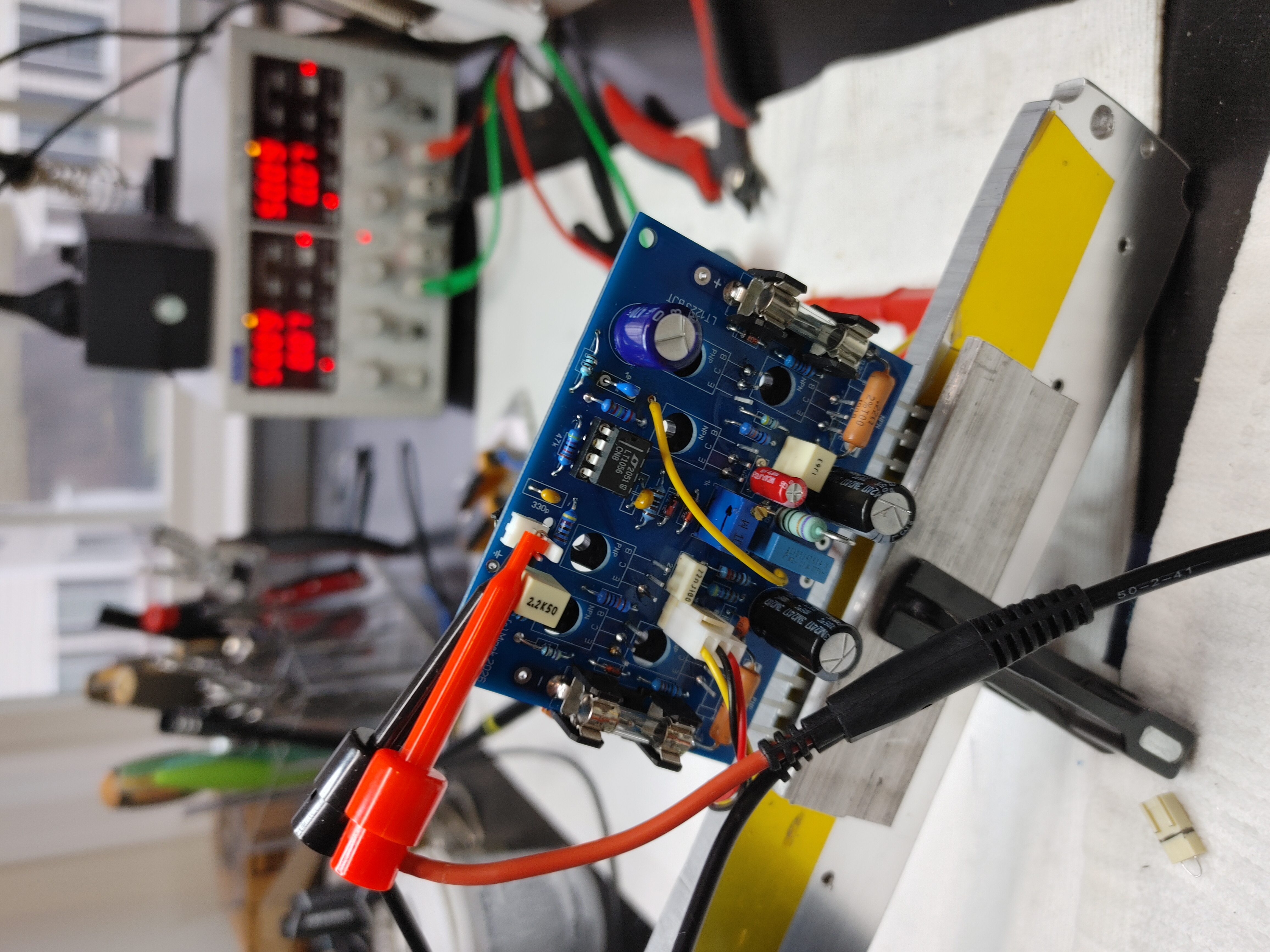

4. board tested |
|

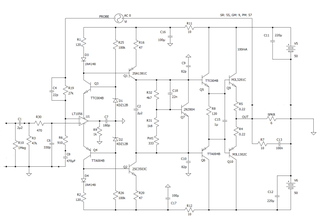

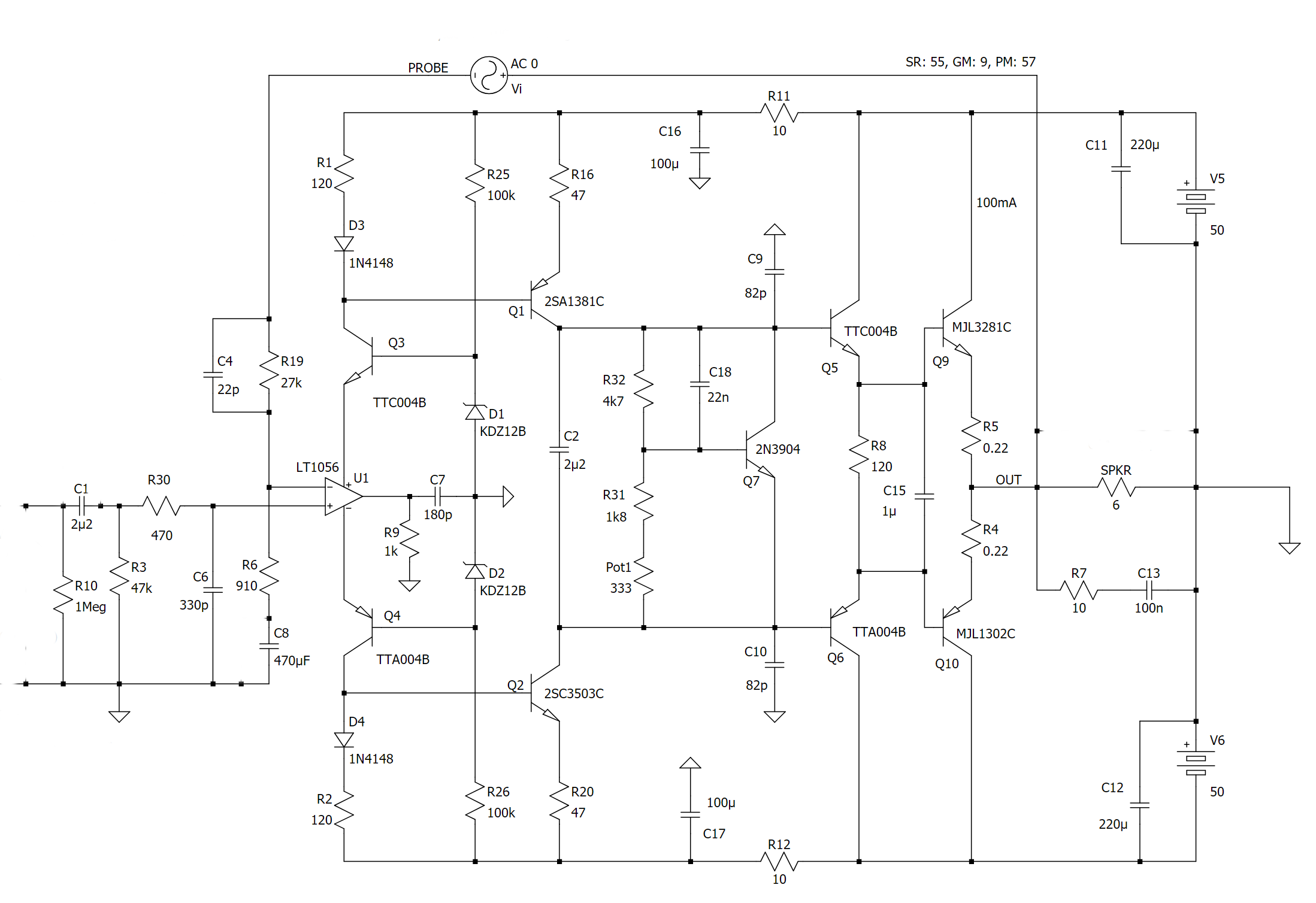

5. lt1056.bjt.20.ok |

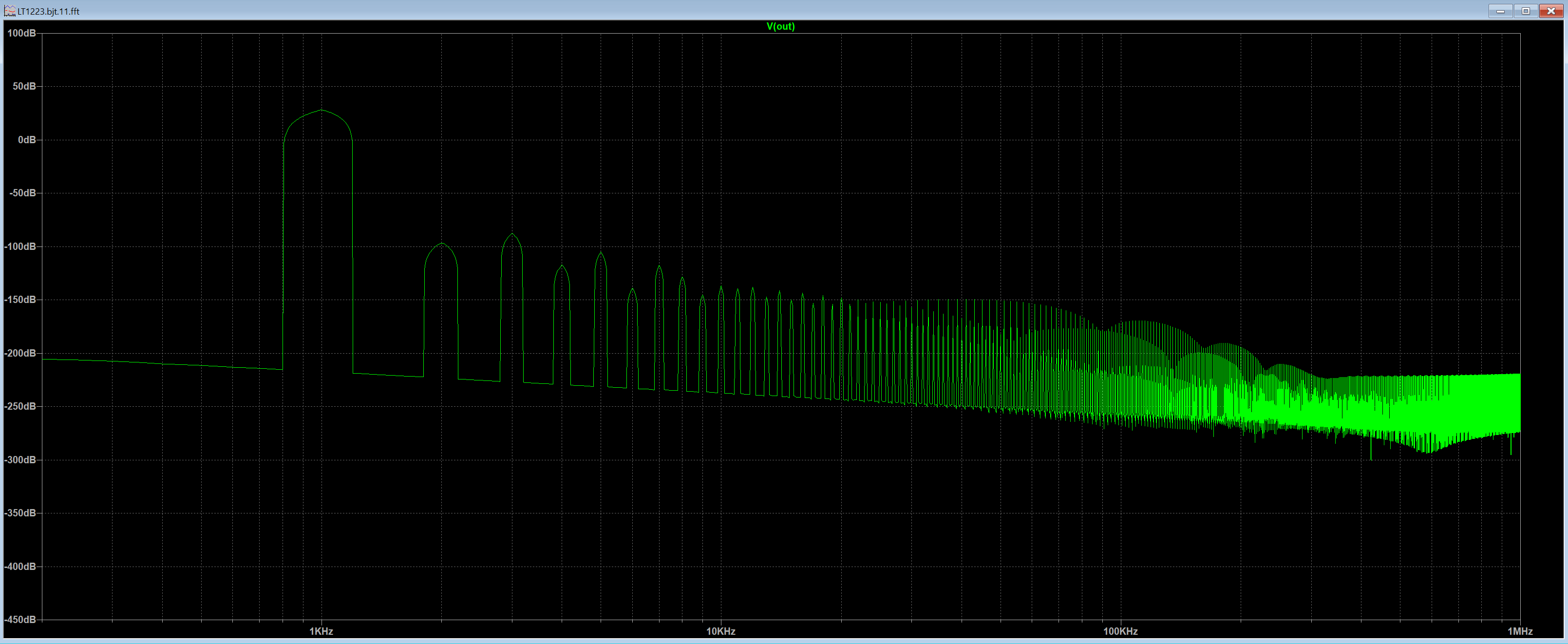

6. lt1223 bjt fft |
7. lt1223 bjt thd |
8. Pcb LT1223.bjt.14 |
|
9. squares 17khz |

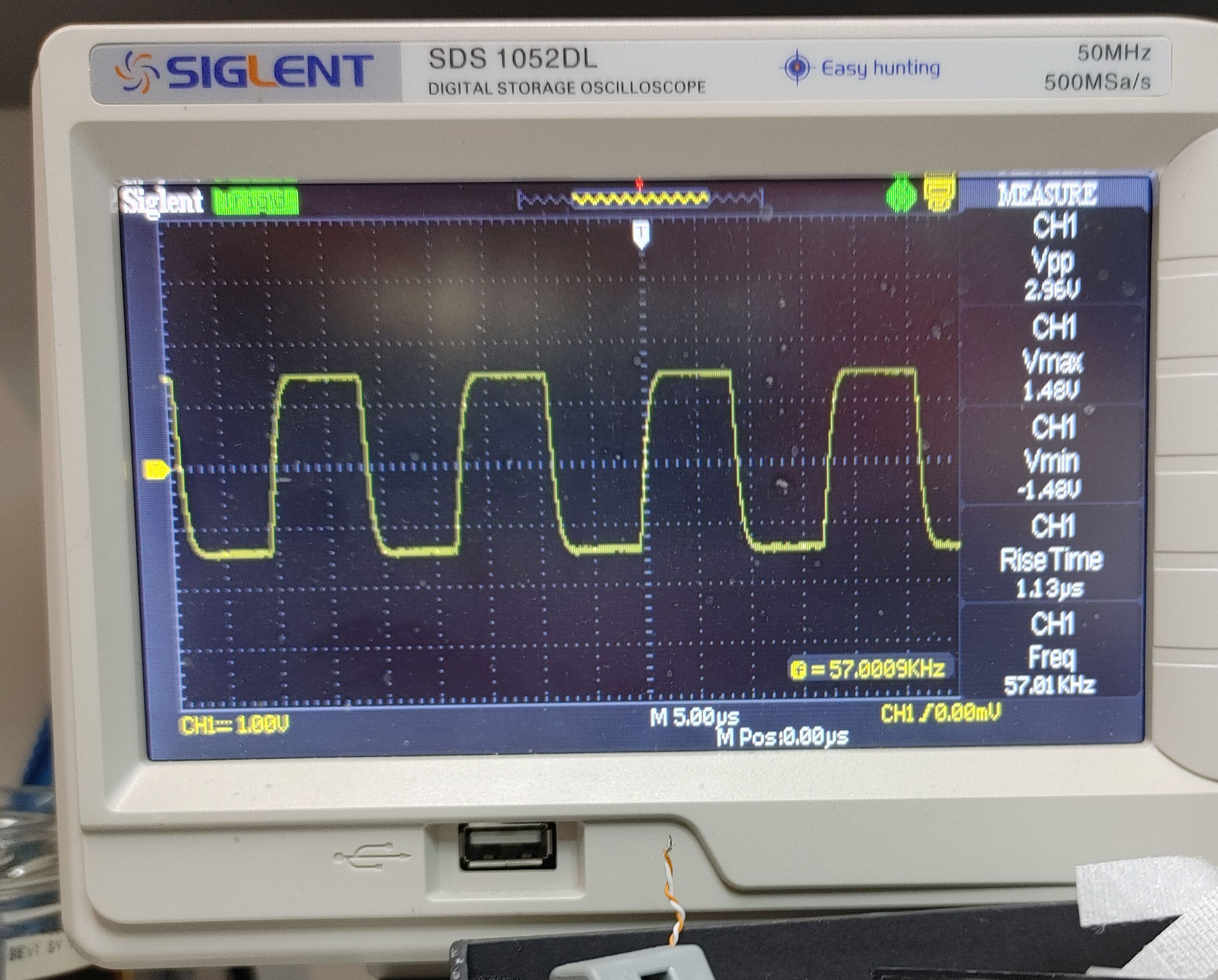

10. squares 57khz. |

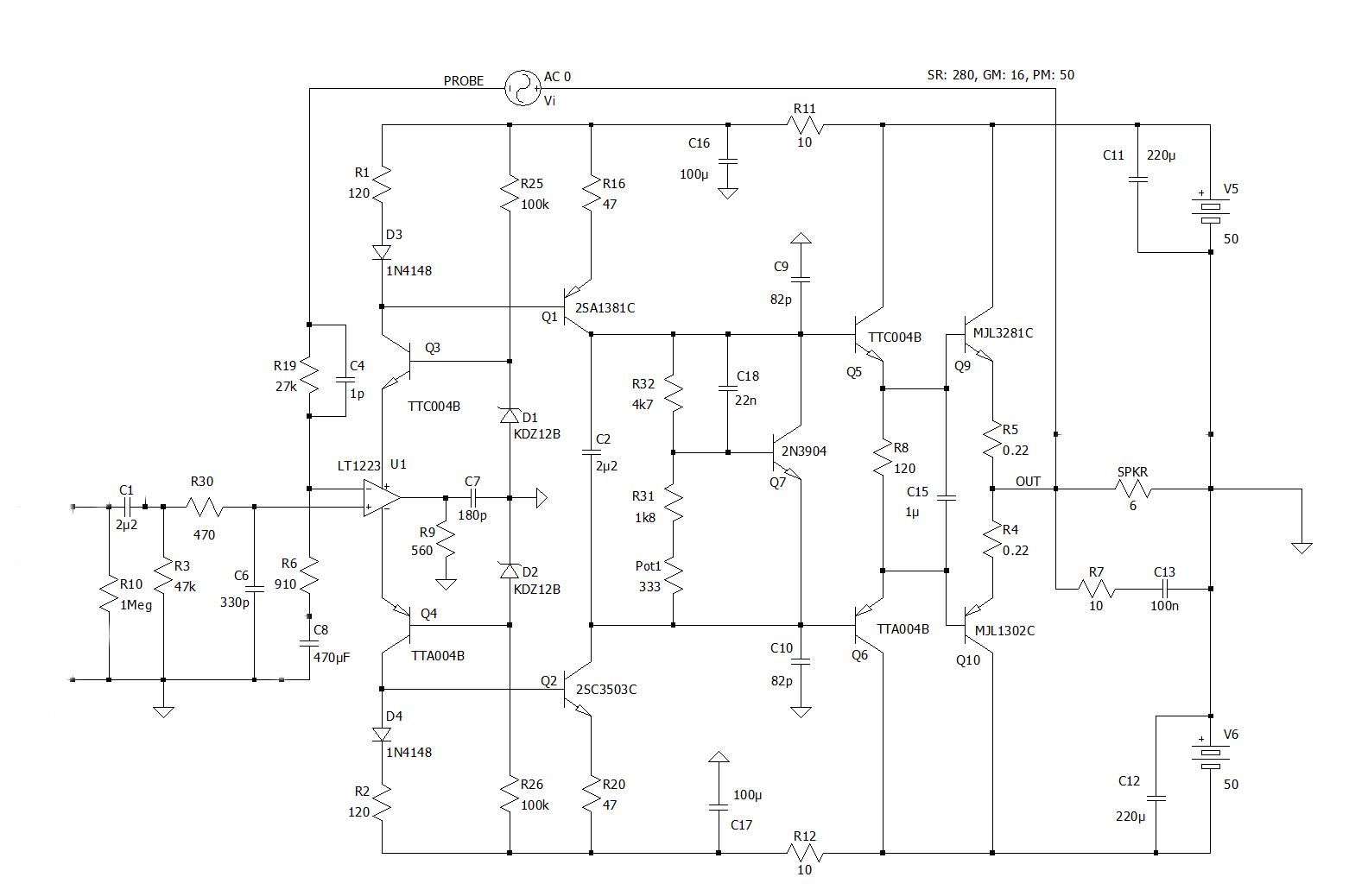

11. lt1223 schematic bjt |
