Php Hawk Amplifier

October 2023
StatusBuilt
Circuit familyHawksford-related experiment
Photographs12 full-size gallery images
Downloads1 local design and reference files

Project Notes

A compact Hawksford-related amplifier experiment preserved with its schematic, LTspice revisions, populated board, scope testing and assembled hardware.

diyAudio discussion

Photo Gallery

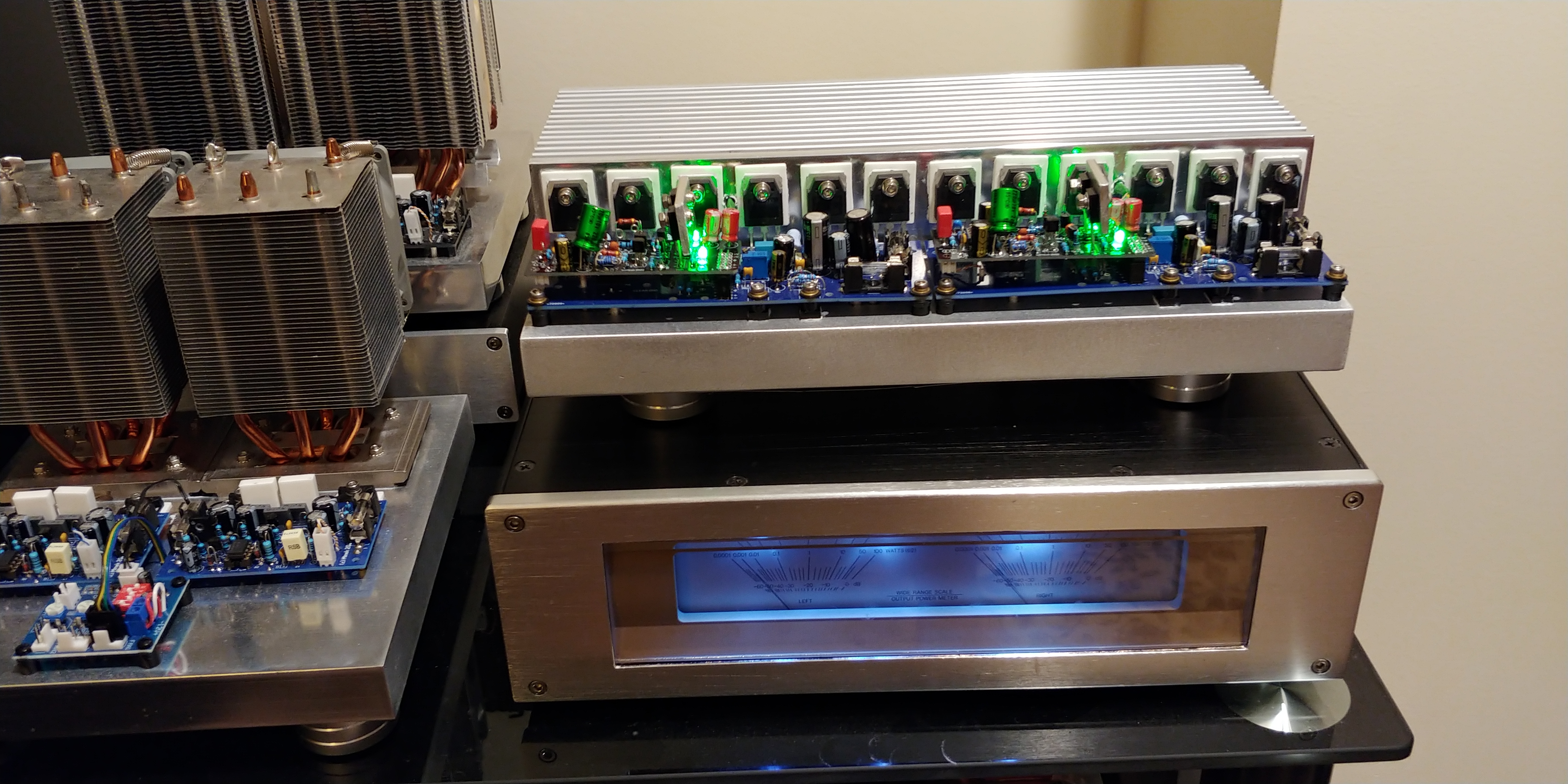

20231031 194312

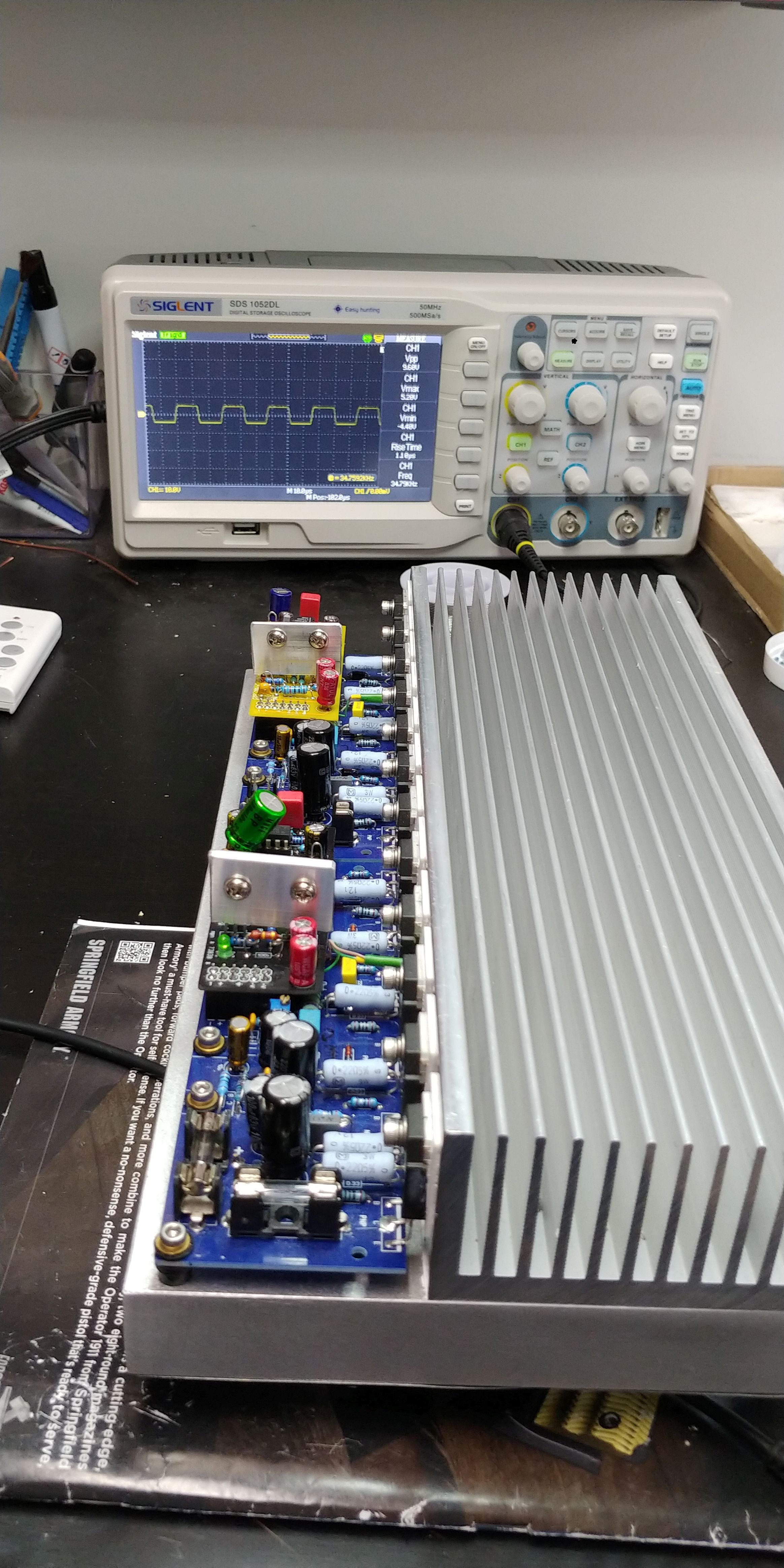

1. 20231031 194312 		amp plus scope

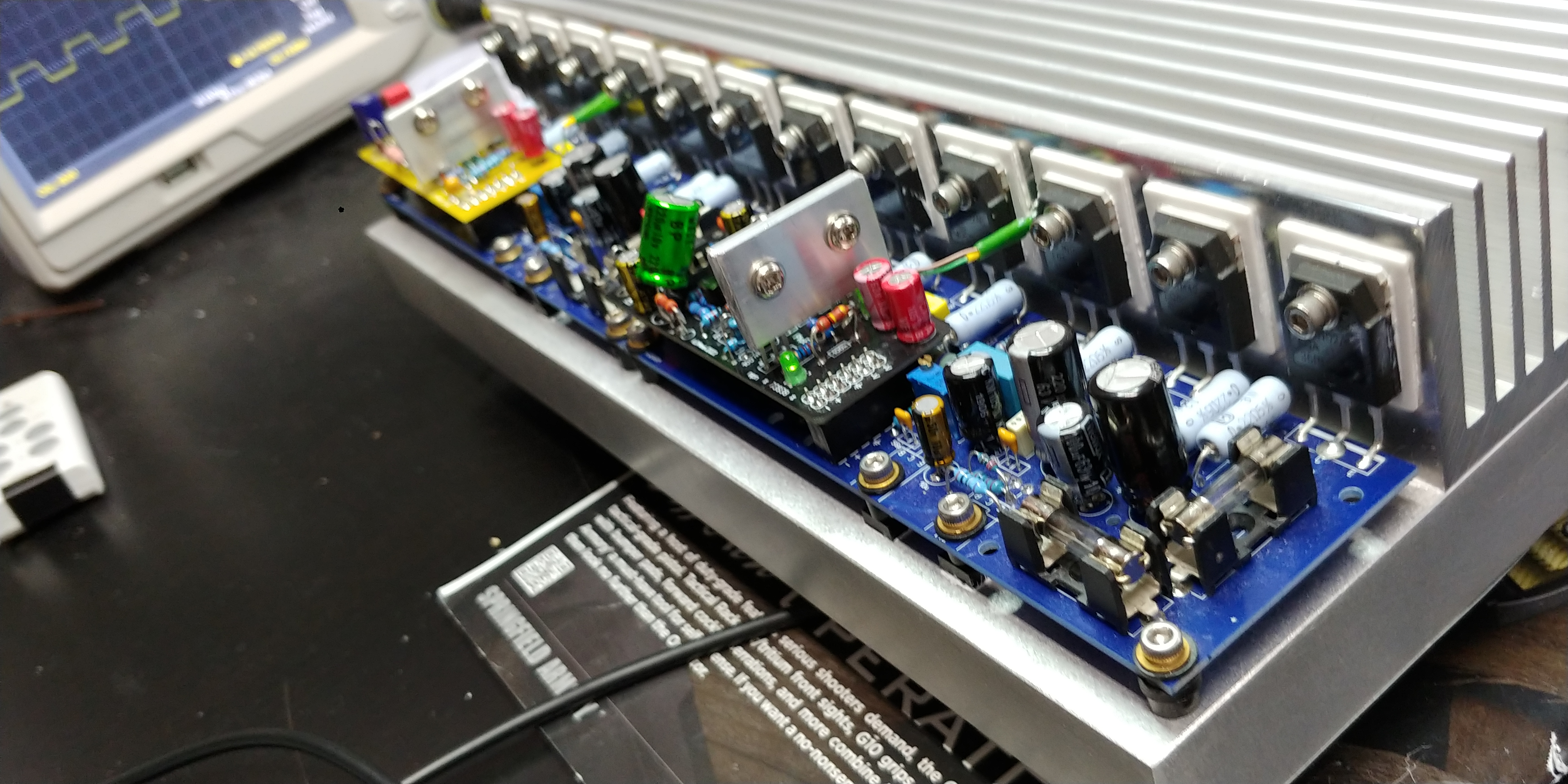

2. amp plus scope 		board closeup2

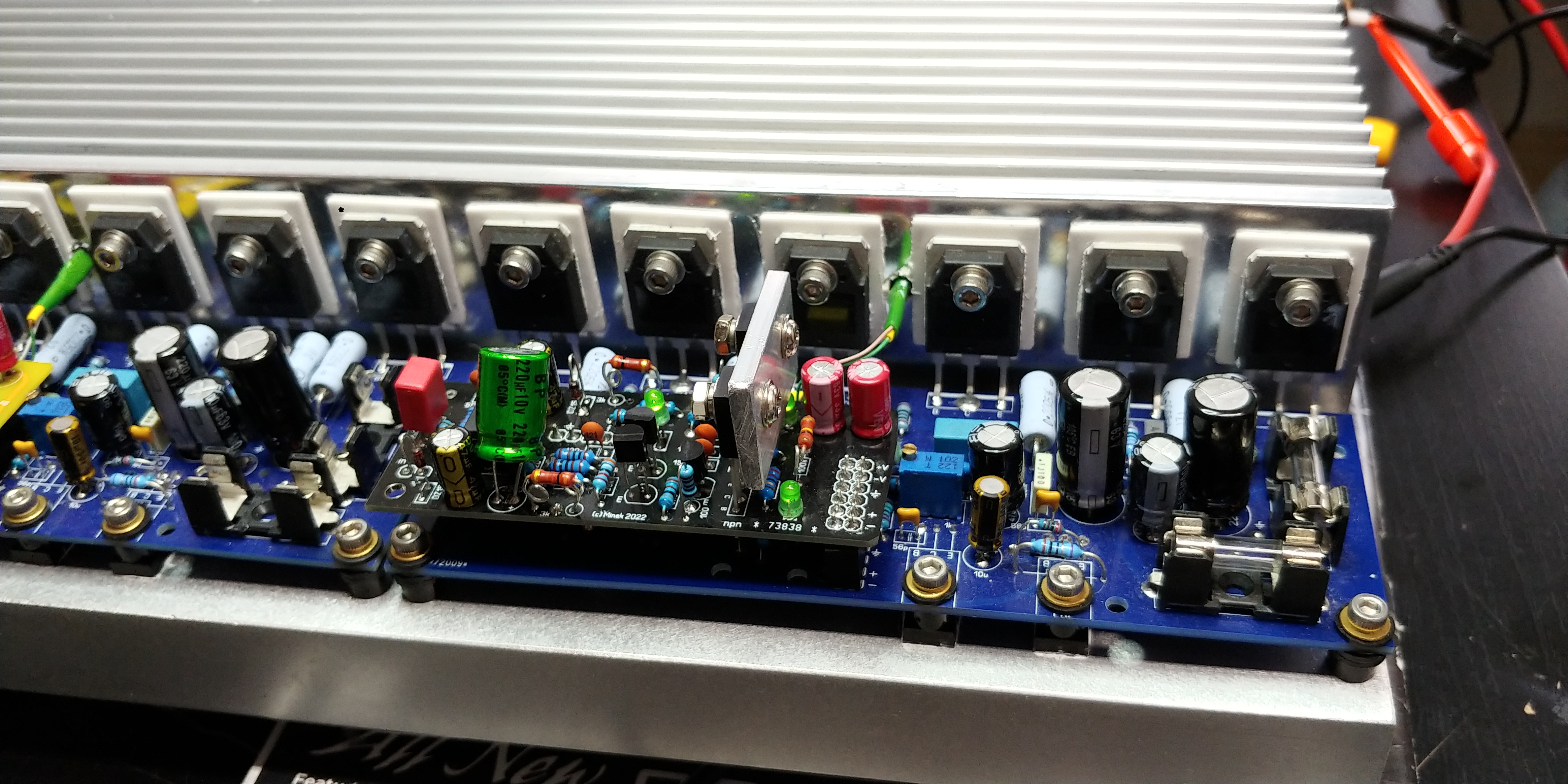

3. board closeup2 		board closeup
4. board closeup

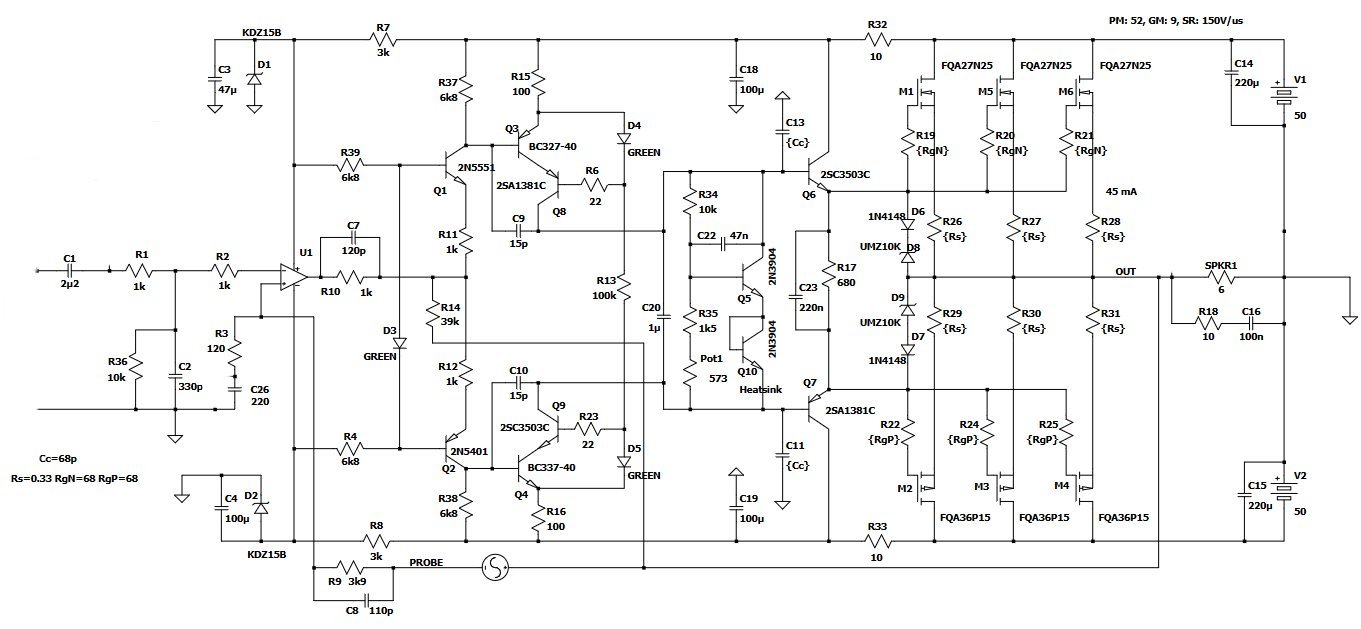

php hawk

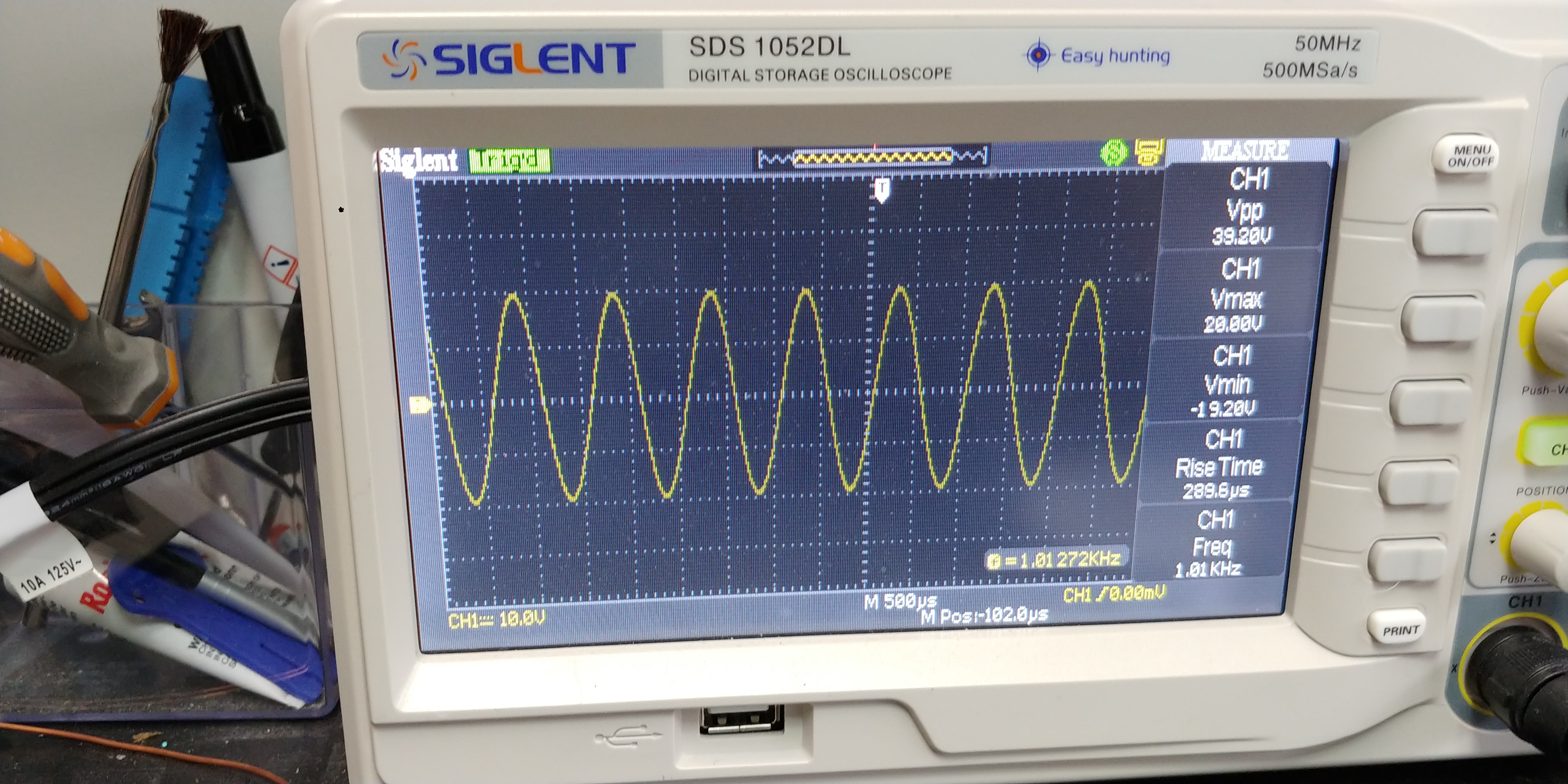

5. php hawk 		sinus1khz

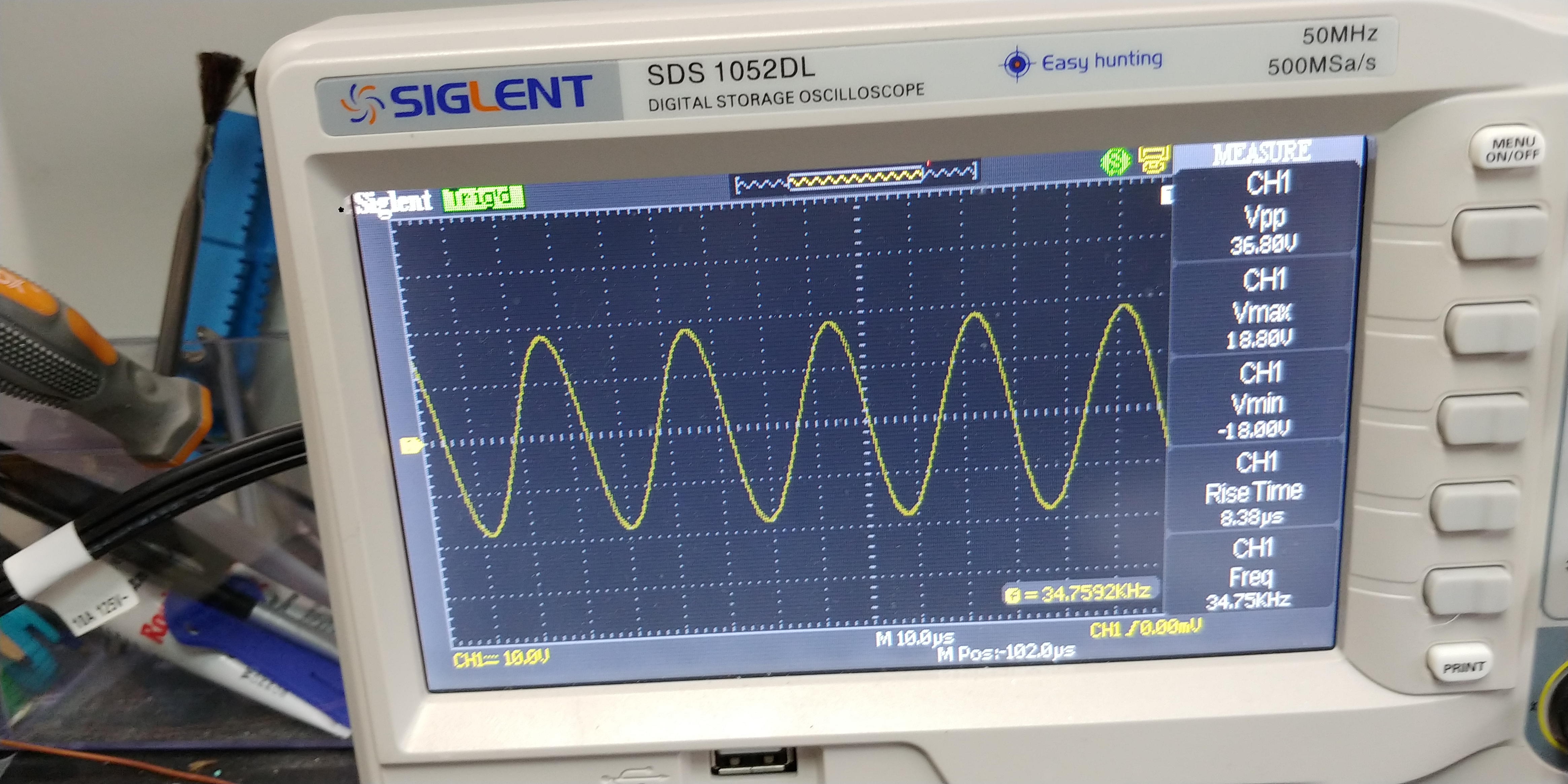

6. sinus1khz 		sinus34khz

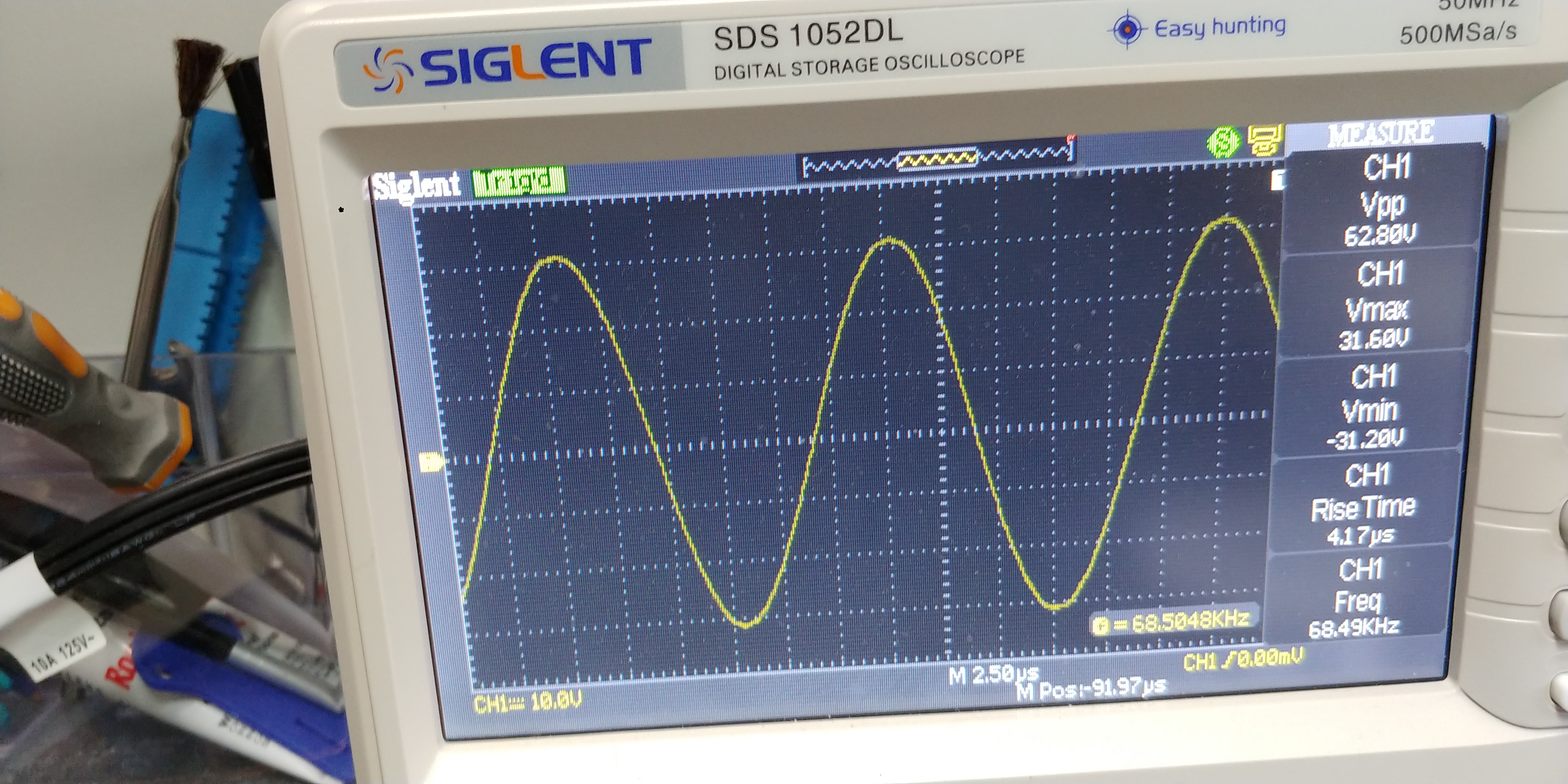

7. sinus34khz 		sinus68khz
8. sinus68khz

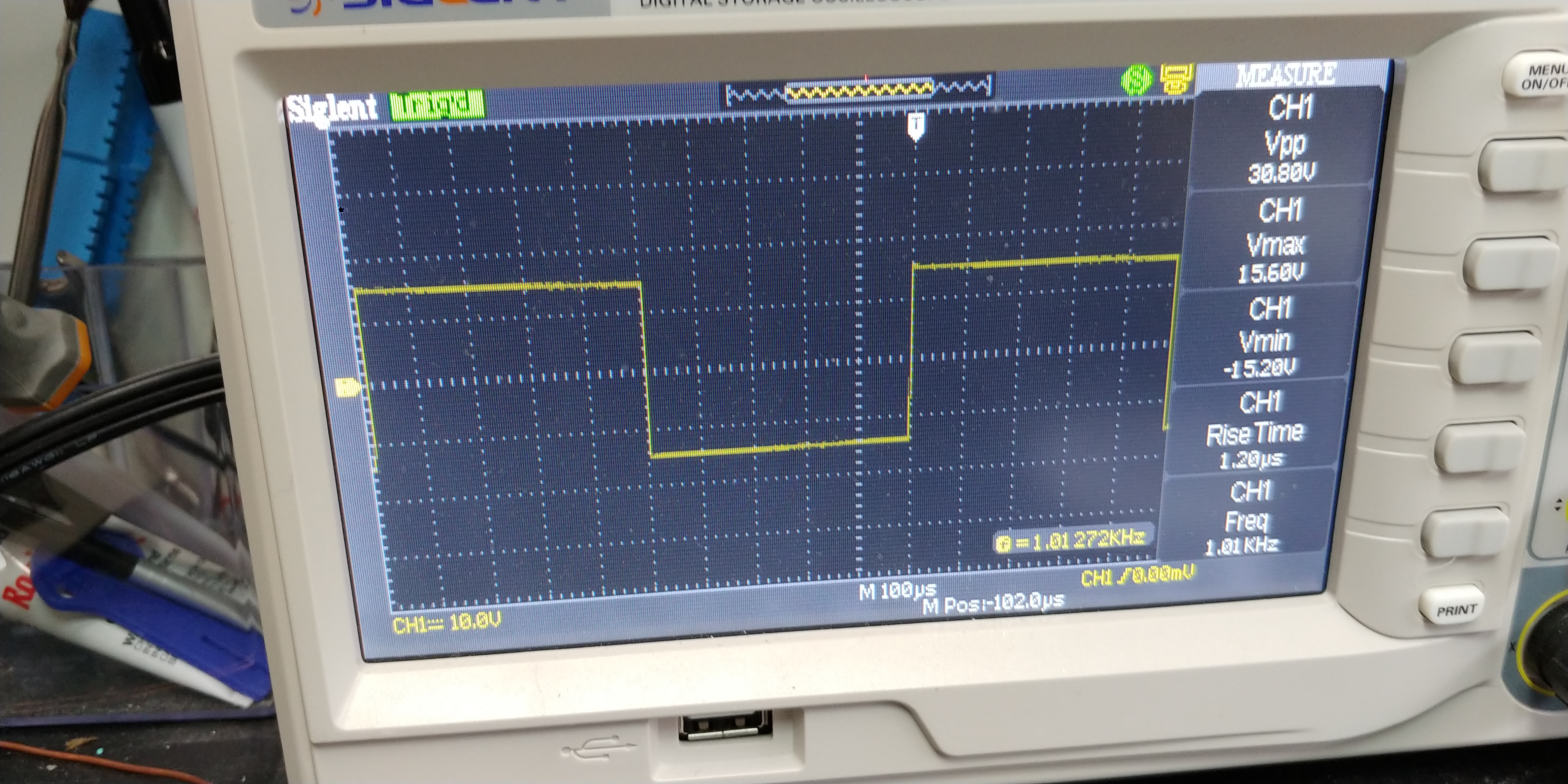

square1khz

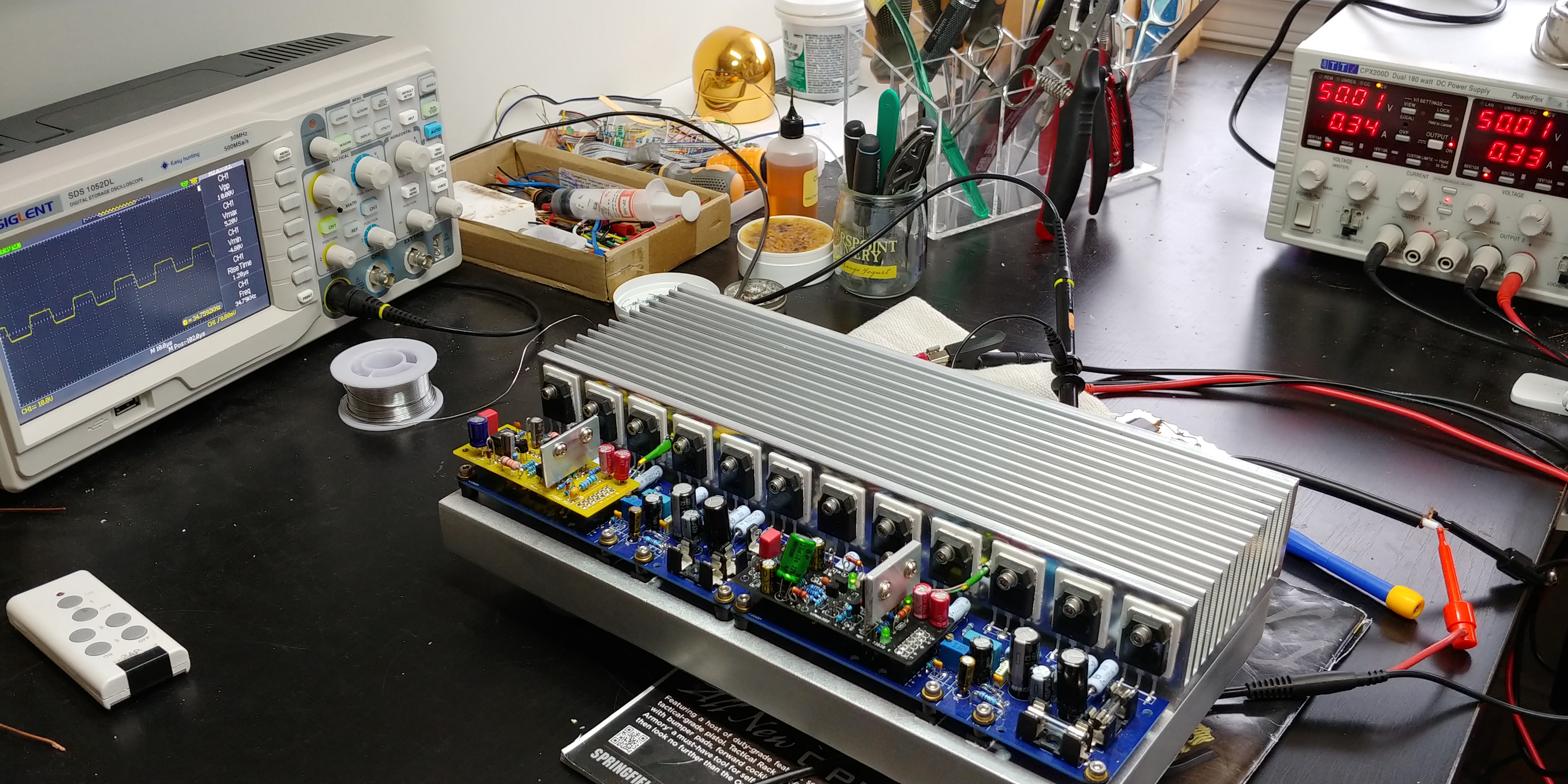

9. square1khz 		suares 34khz

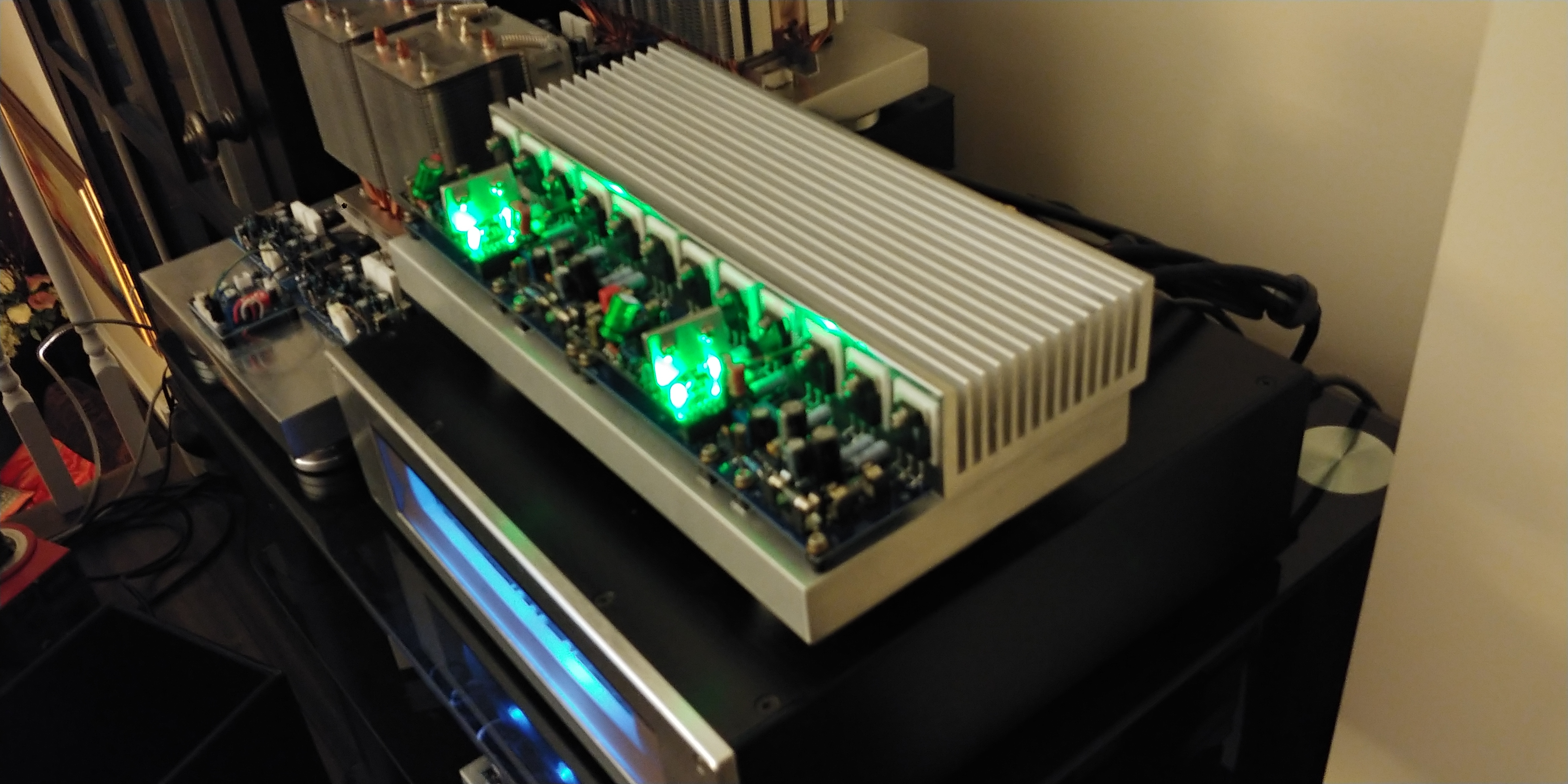

10. suares 34khz 		20231031 194337

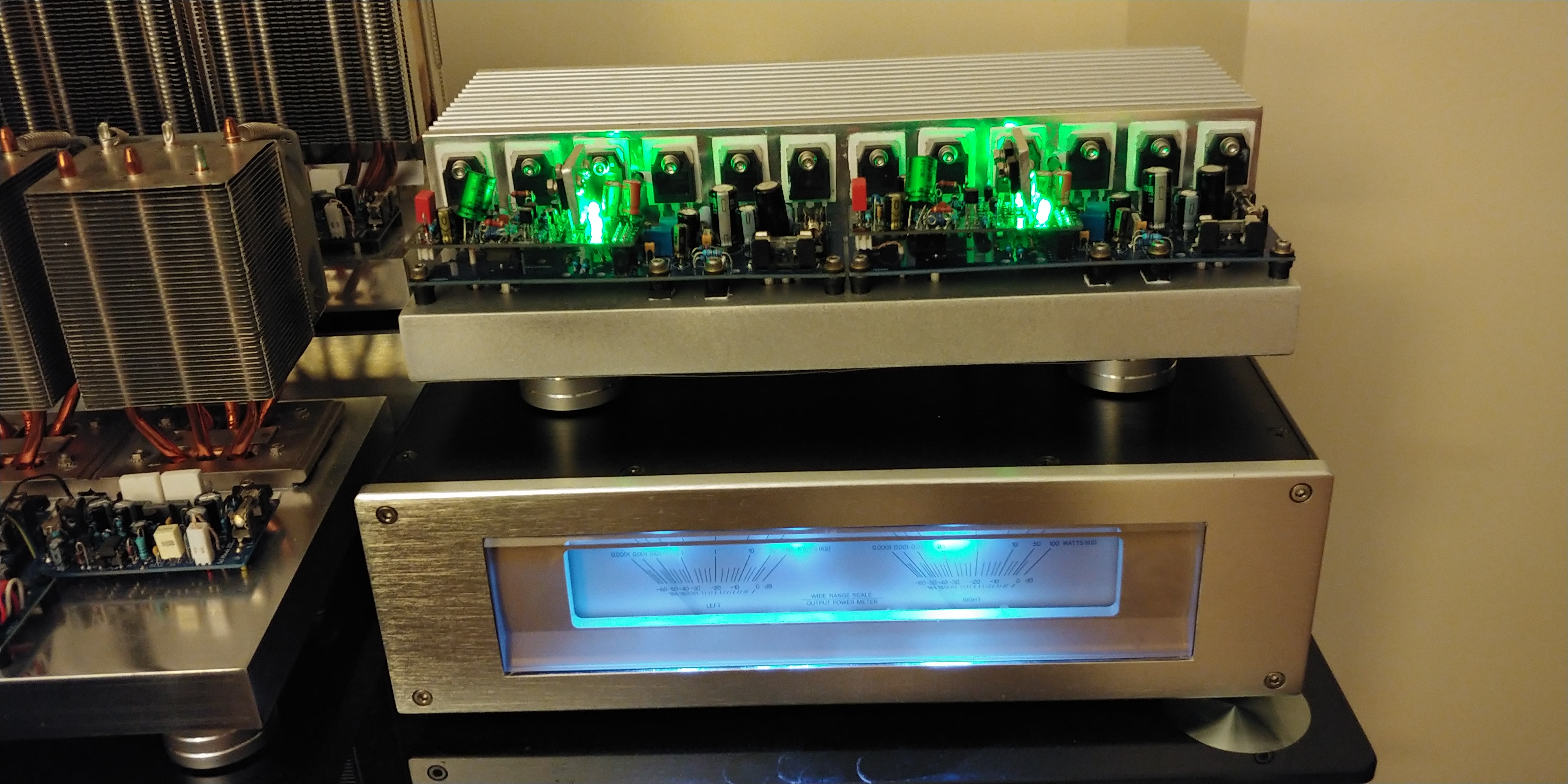

11. 20231031 194337 		20231031 194327
12. 20231031 194327

Design Files and Documents

LTspice simulations

FileSize
php_hawk.30oct2023.2.asc 17 KB
