SauberKraut Amplifier

November 2022
StatusBuilt
Circuit familyMirror VAS
Photographs22 full-size gallery images
Downloads1 local design and reference files

Project Notes

A previously unpublished build using a mirror-VAS direction. The working archive contains the simulation, Sprint Layout PCB, board package and construction photographs.

diyAudio discussion

Photo Gallery

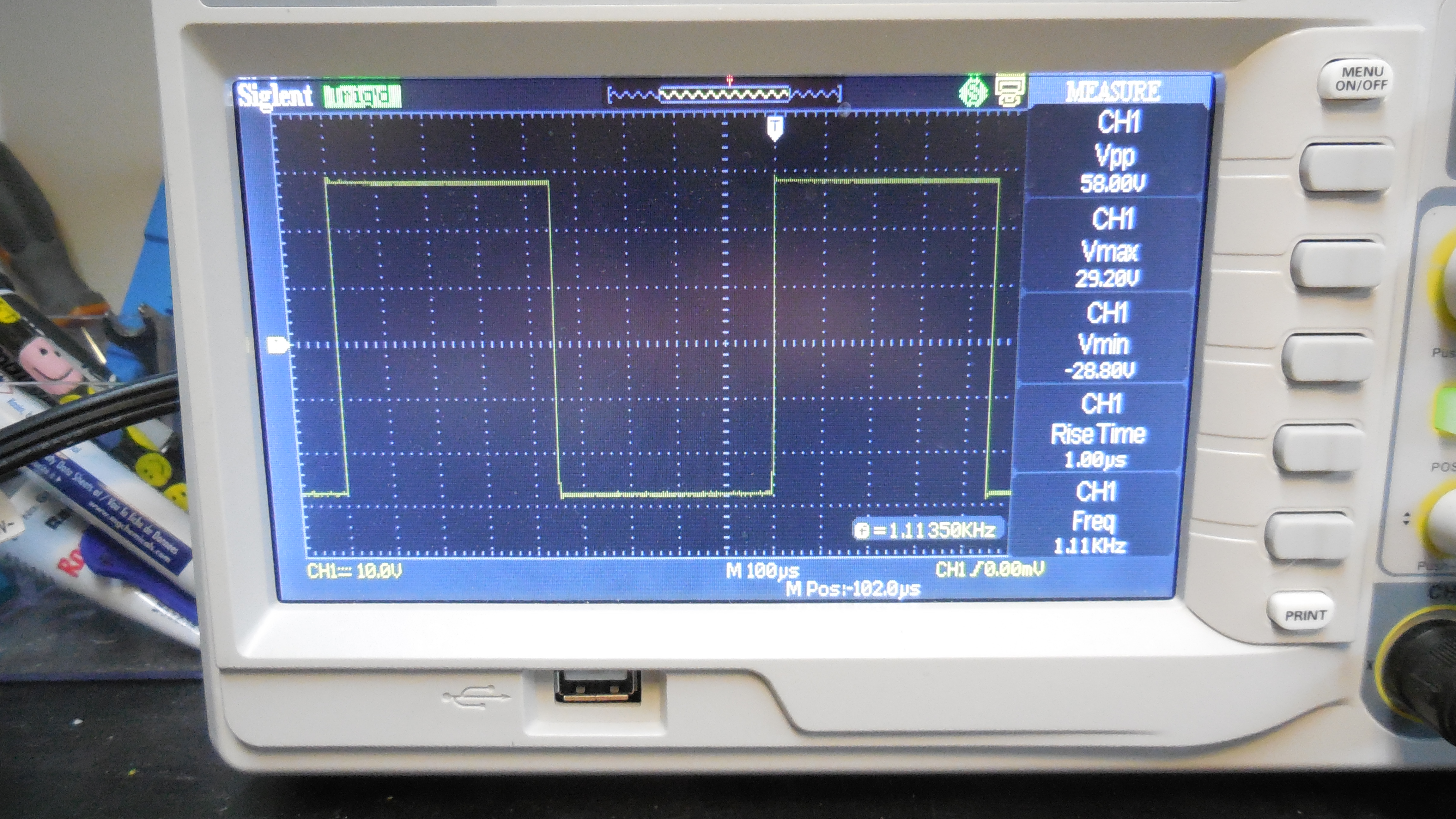

DSCN0757

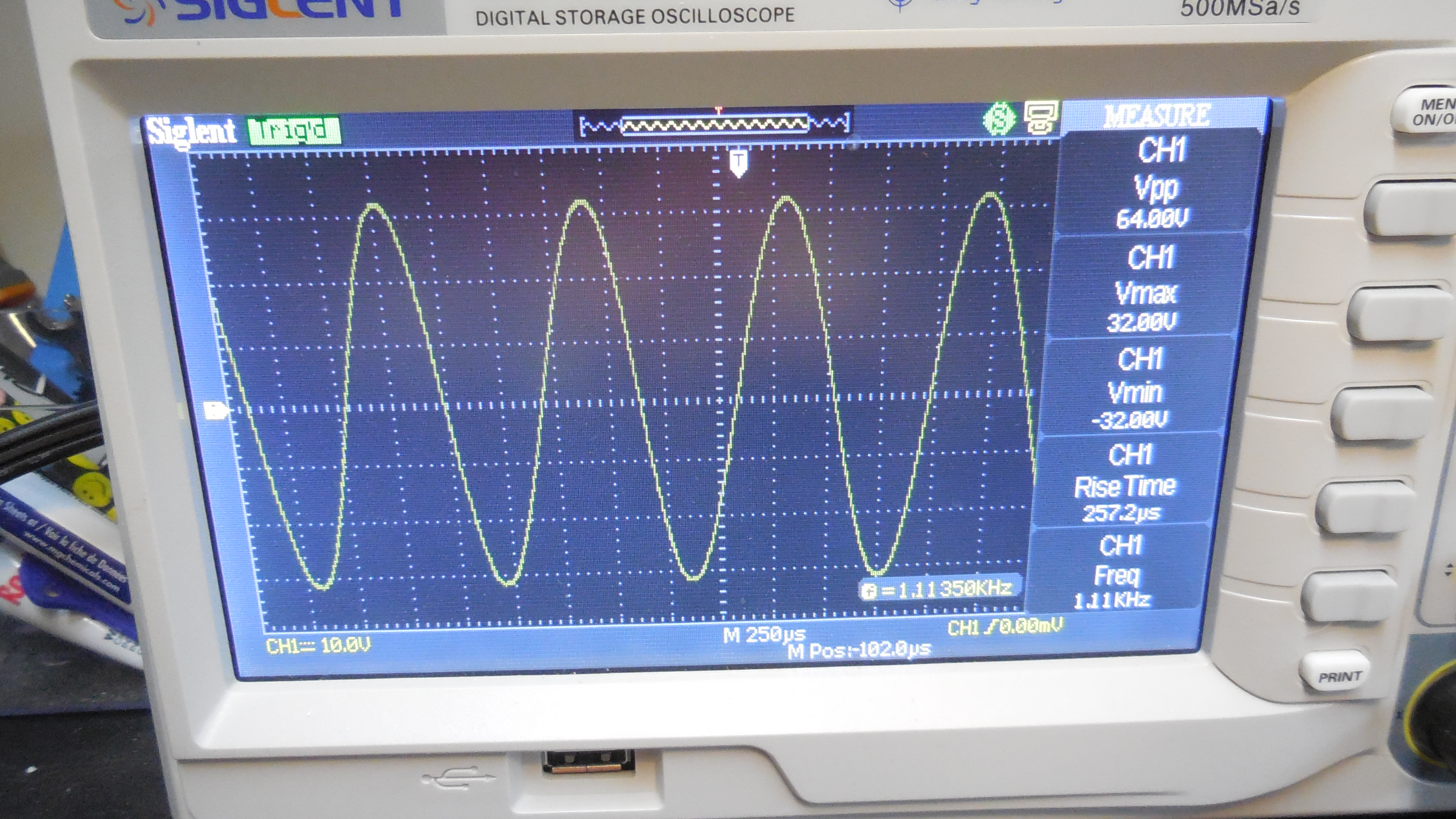

1. DSCN0757 		DSCN0760
2. DSCN0760 		DSCN0761

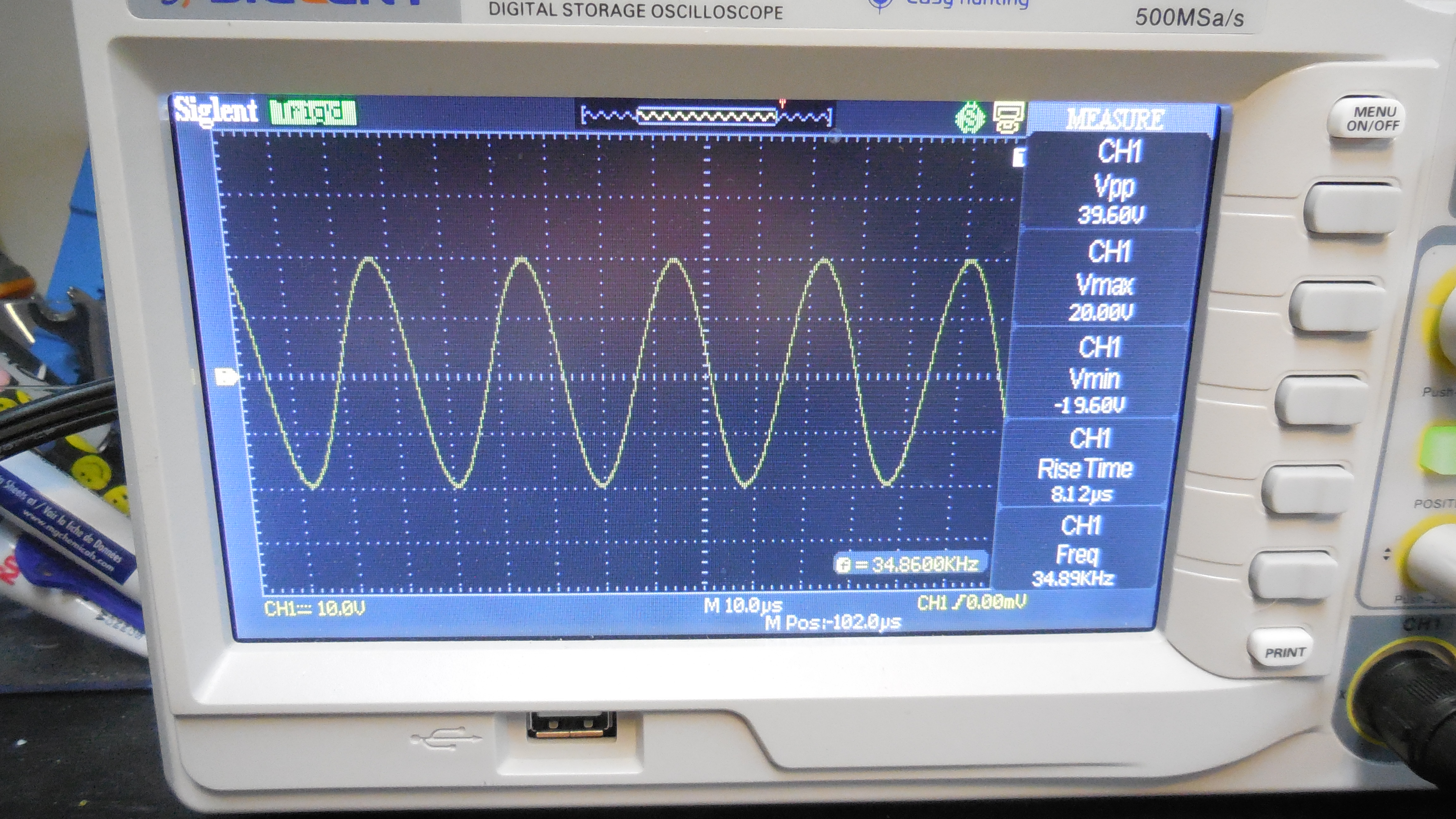

3. DSCN0761 		DSCN0763

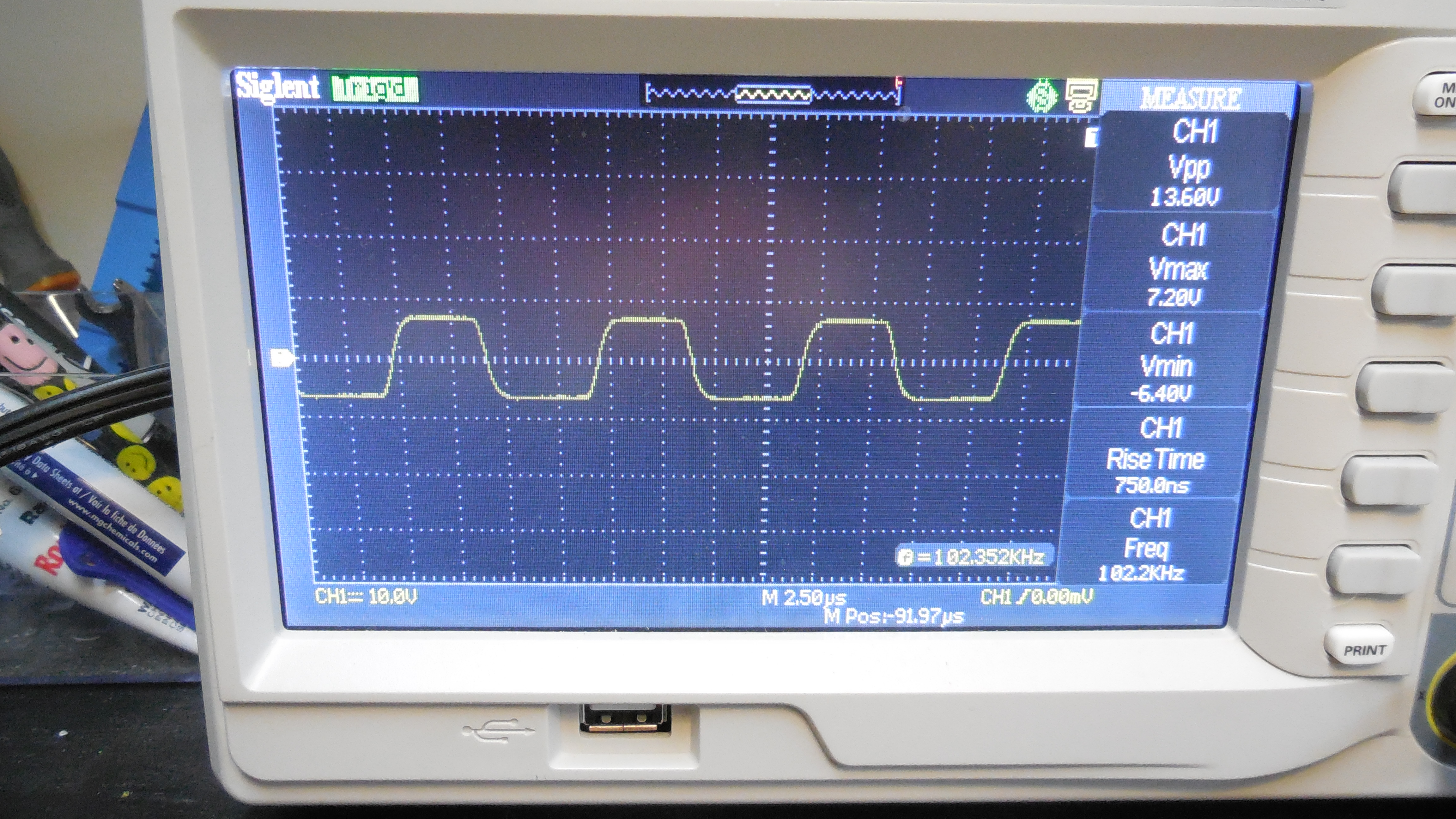

4. DSCN0763

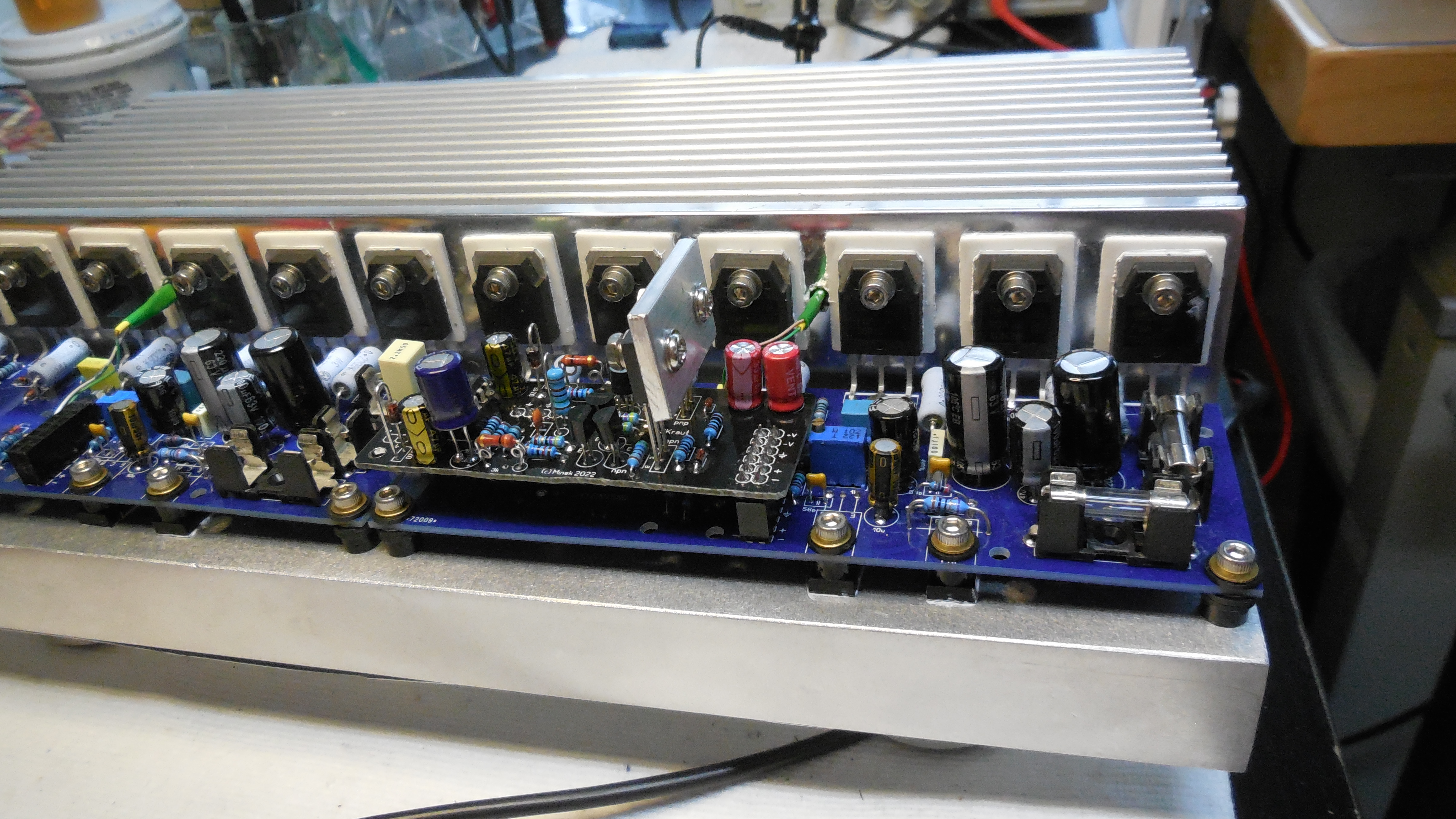

DSCN0764
5. DSCN0764 		DSCN0765

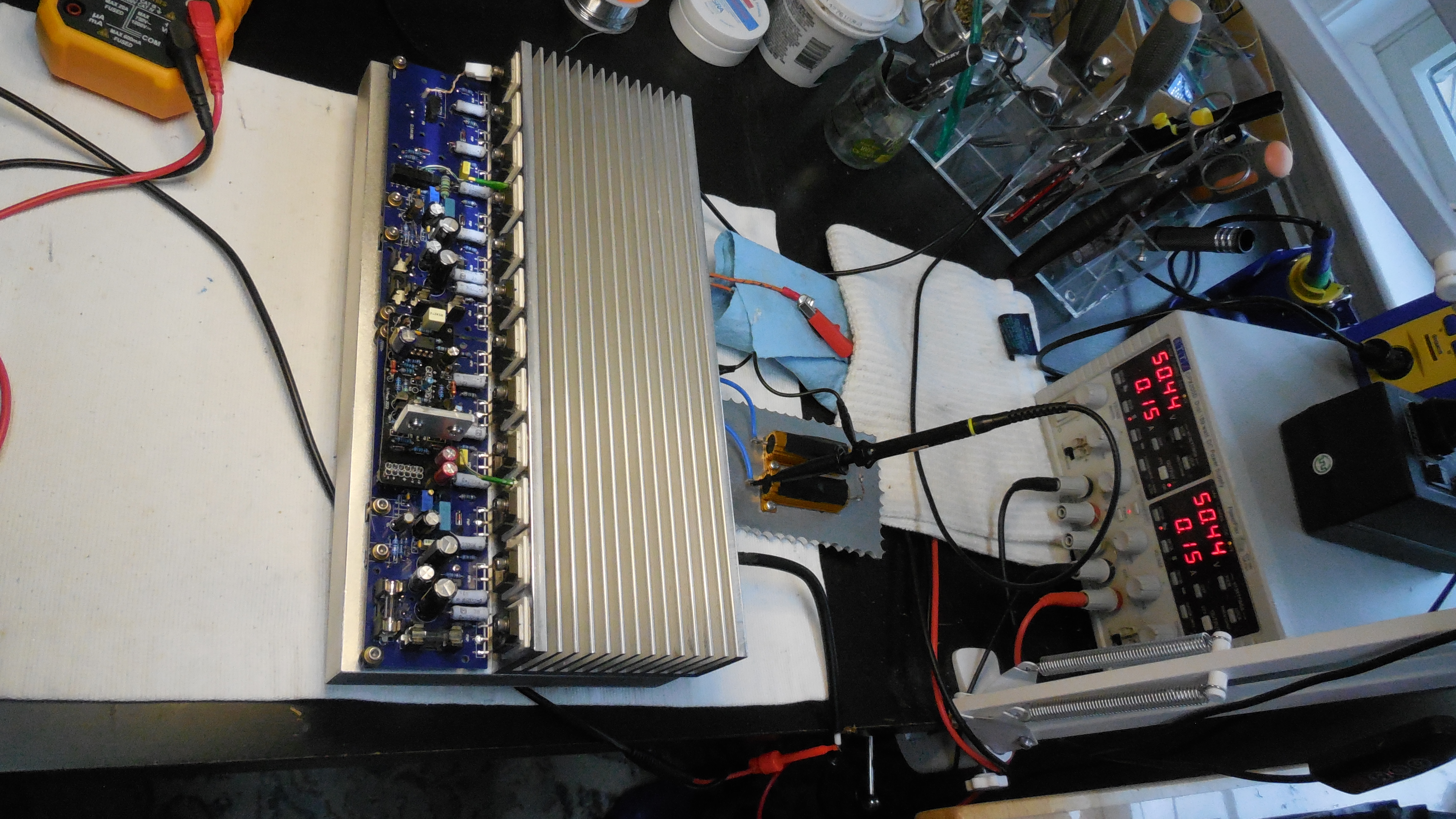

6. DSCN0765 		DSCN0772

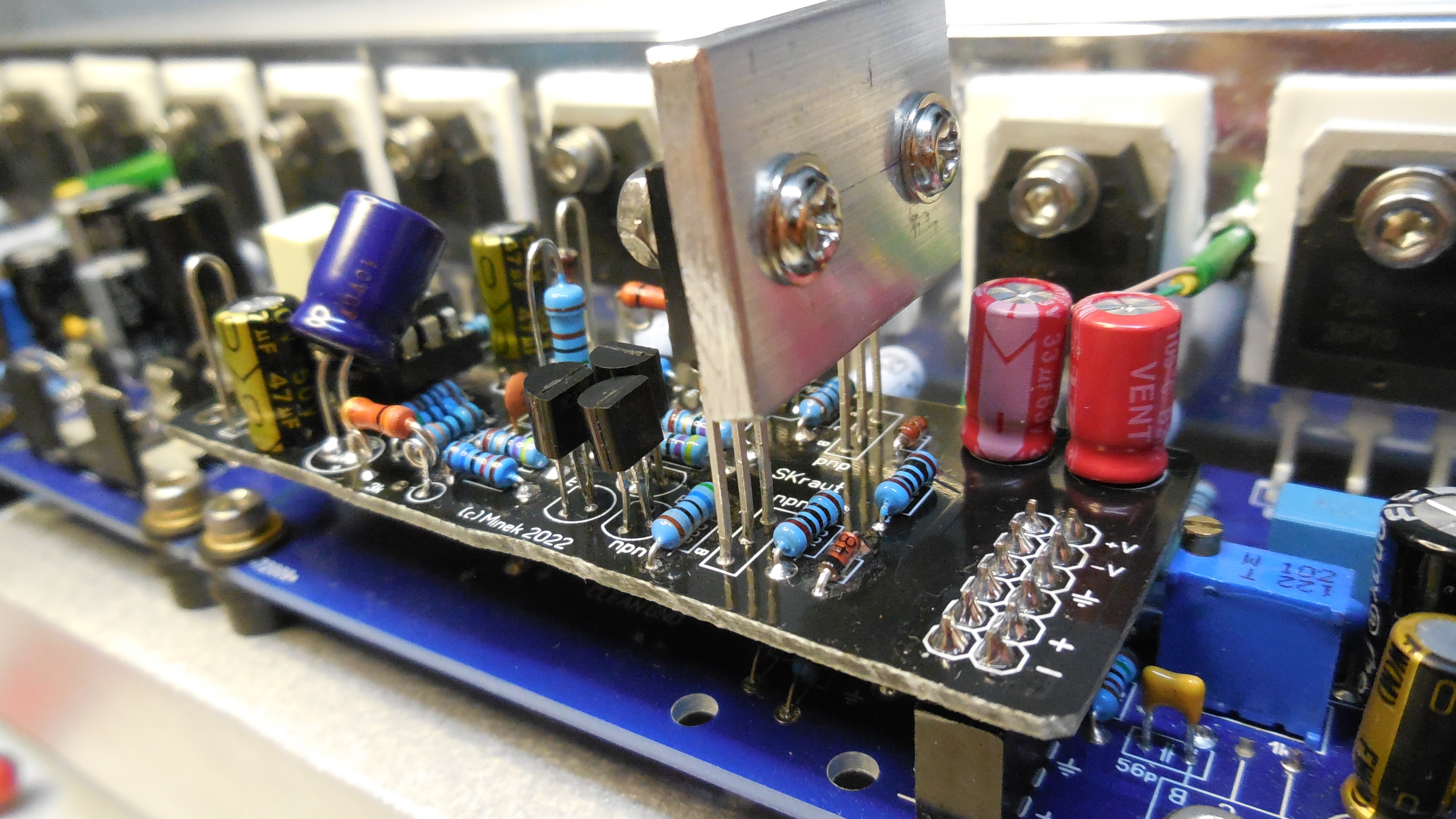

7. DSCN0772 		DSCN0776

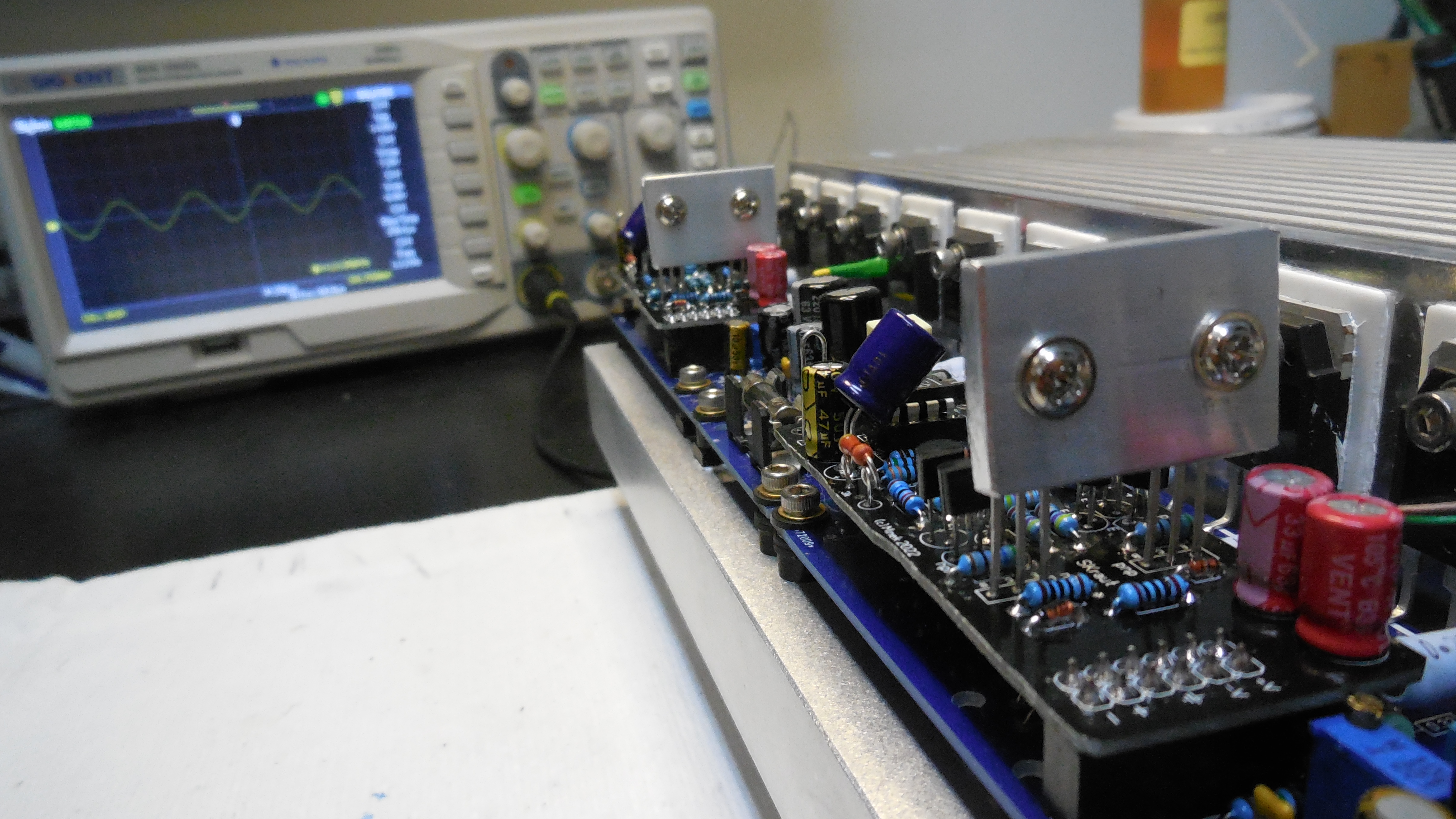

8. DSCN0776

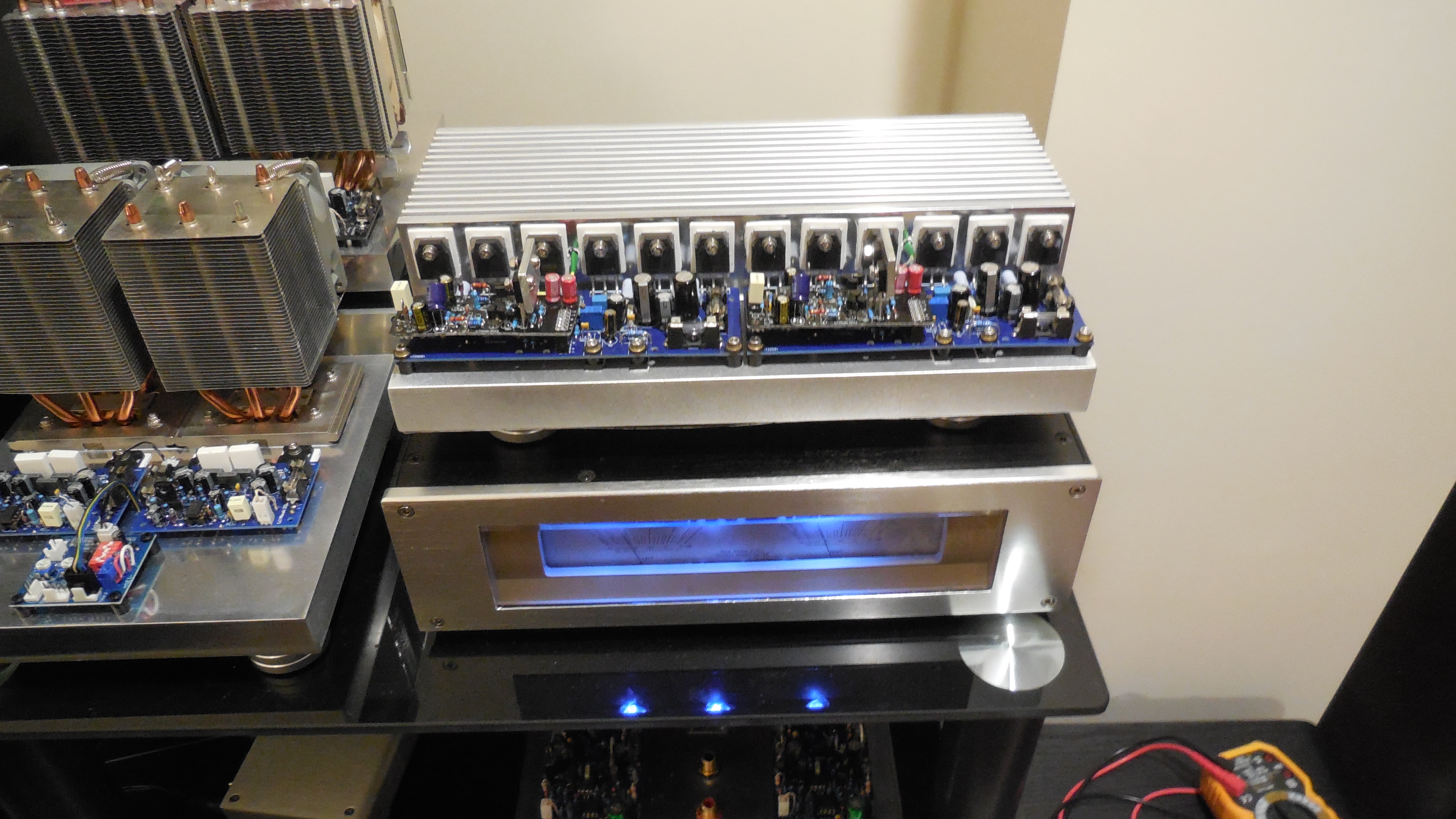

DSCN0778

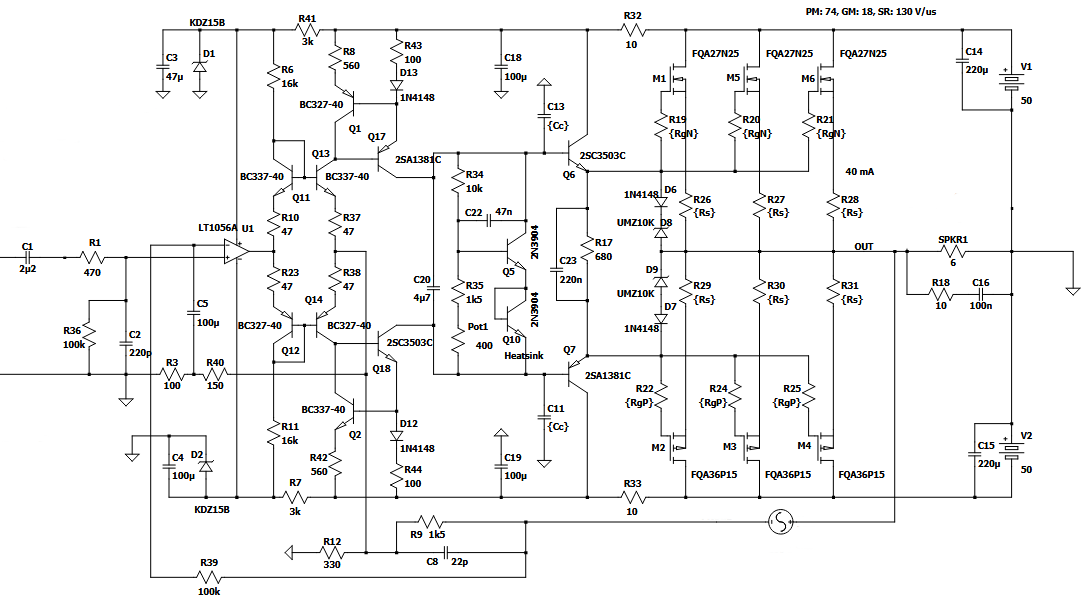

9. DSCN0778 		skraut.8nov22
10. skraut.8nov22 		DSCN0784

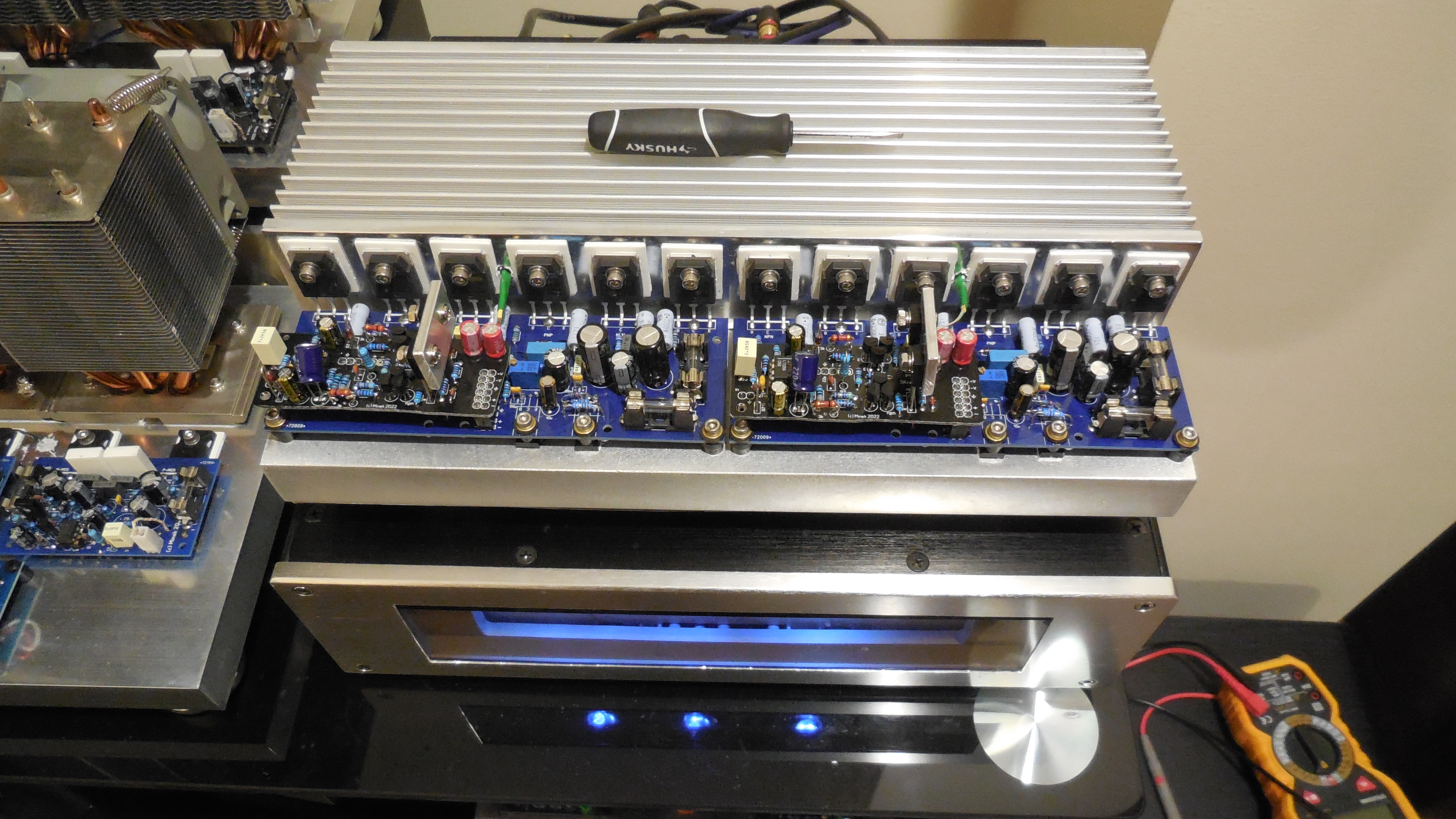

11. DSCN0784 		DSCN0783

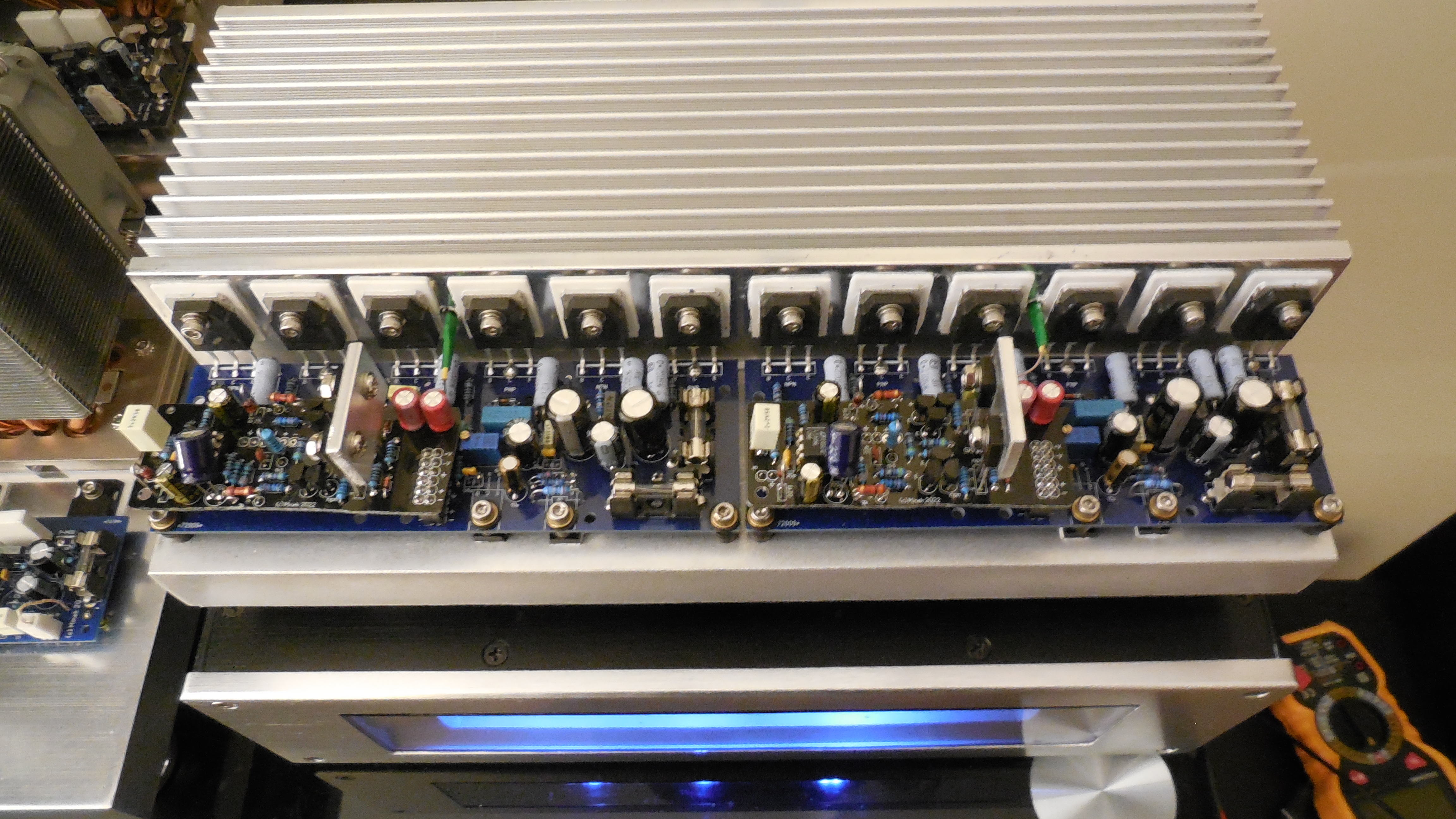

12. DSCN0783
DSCN0781

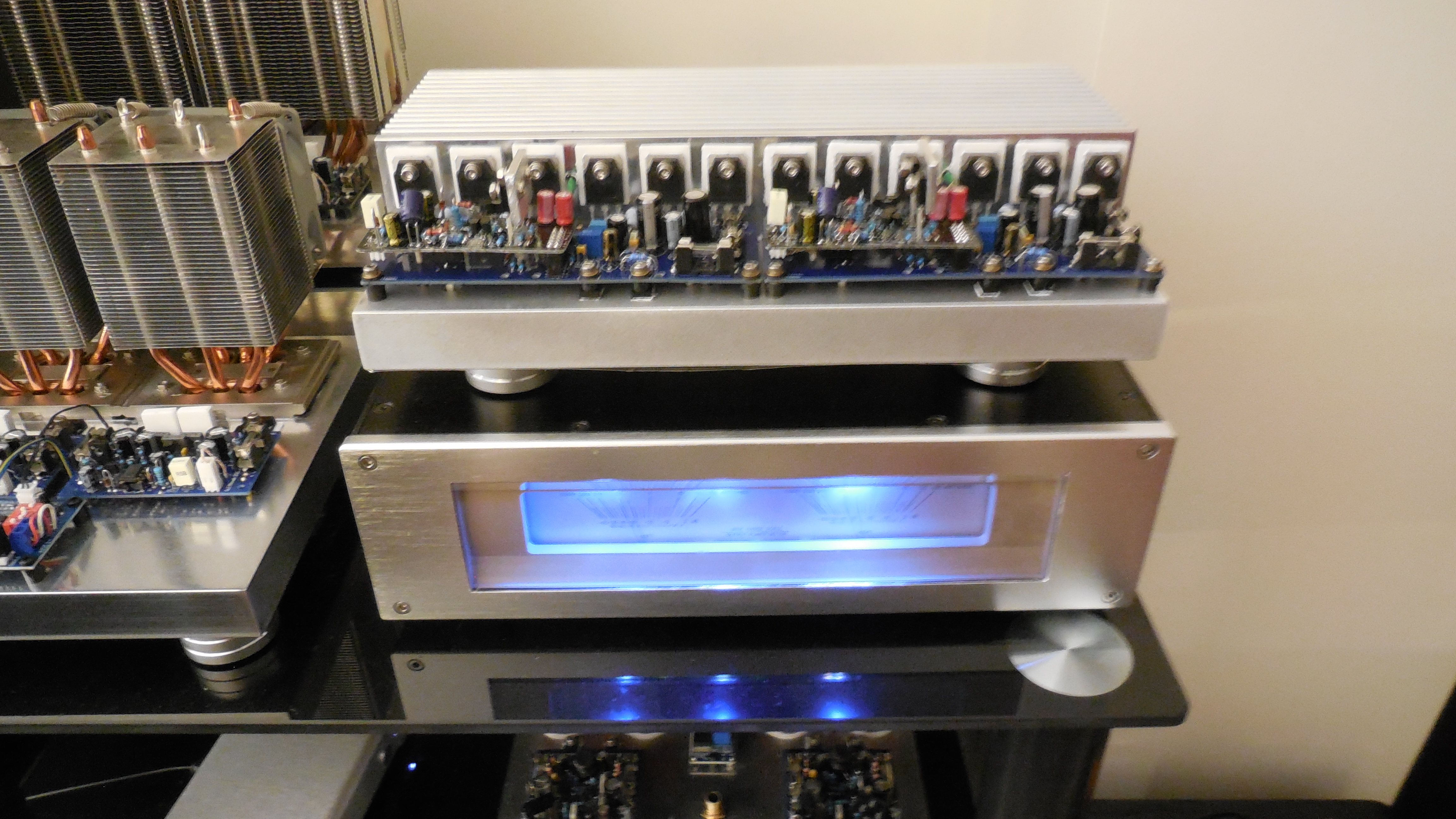

13. DSCN0781 		DSCN0780
14. DSCN0780 		DSCN0779

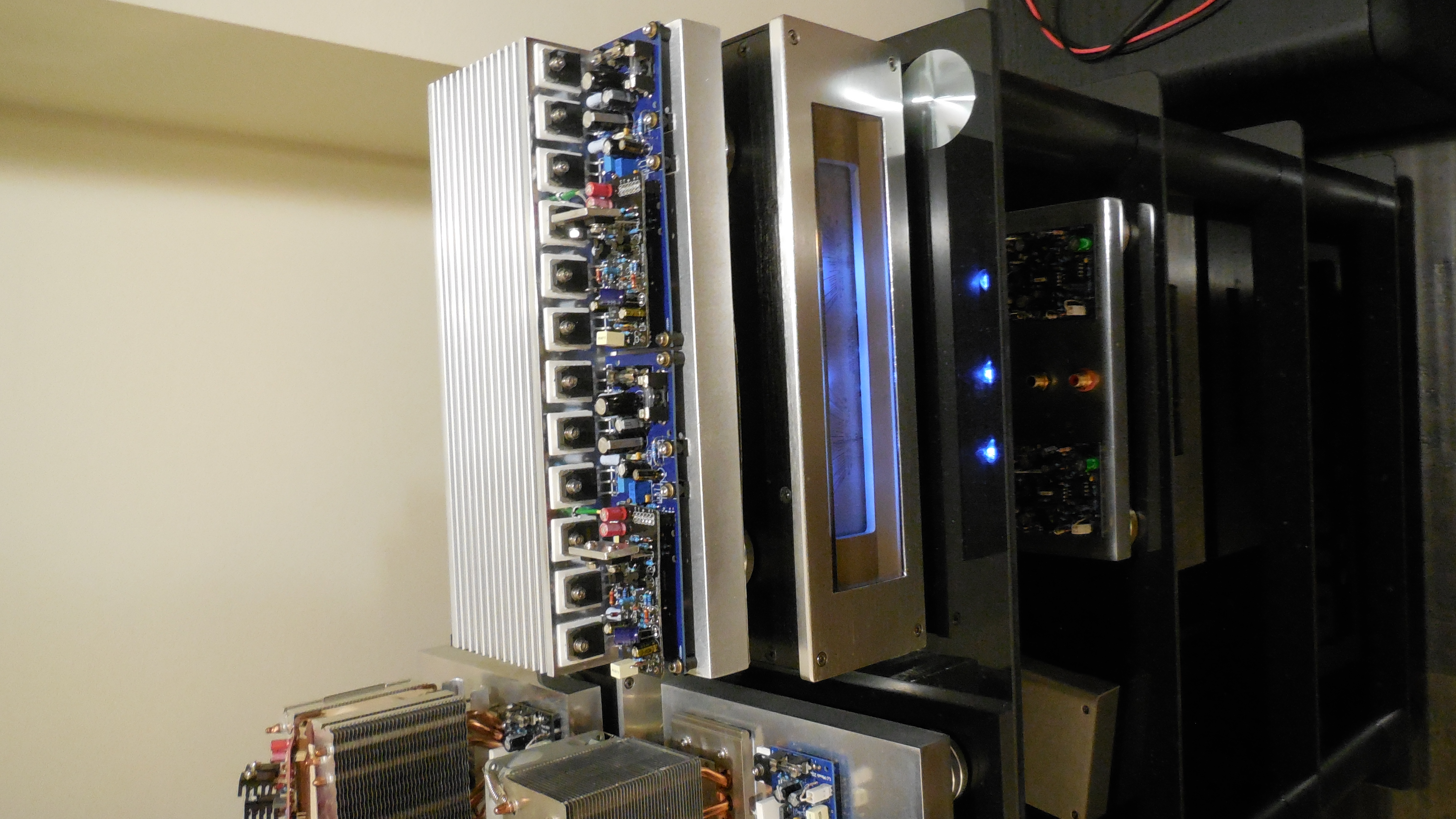

15. DSCN0779 		DSCN0777

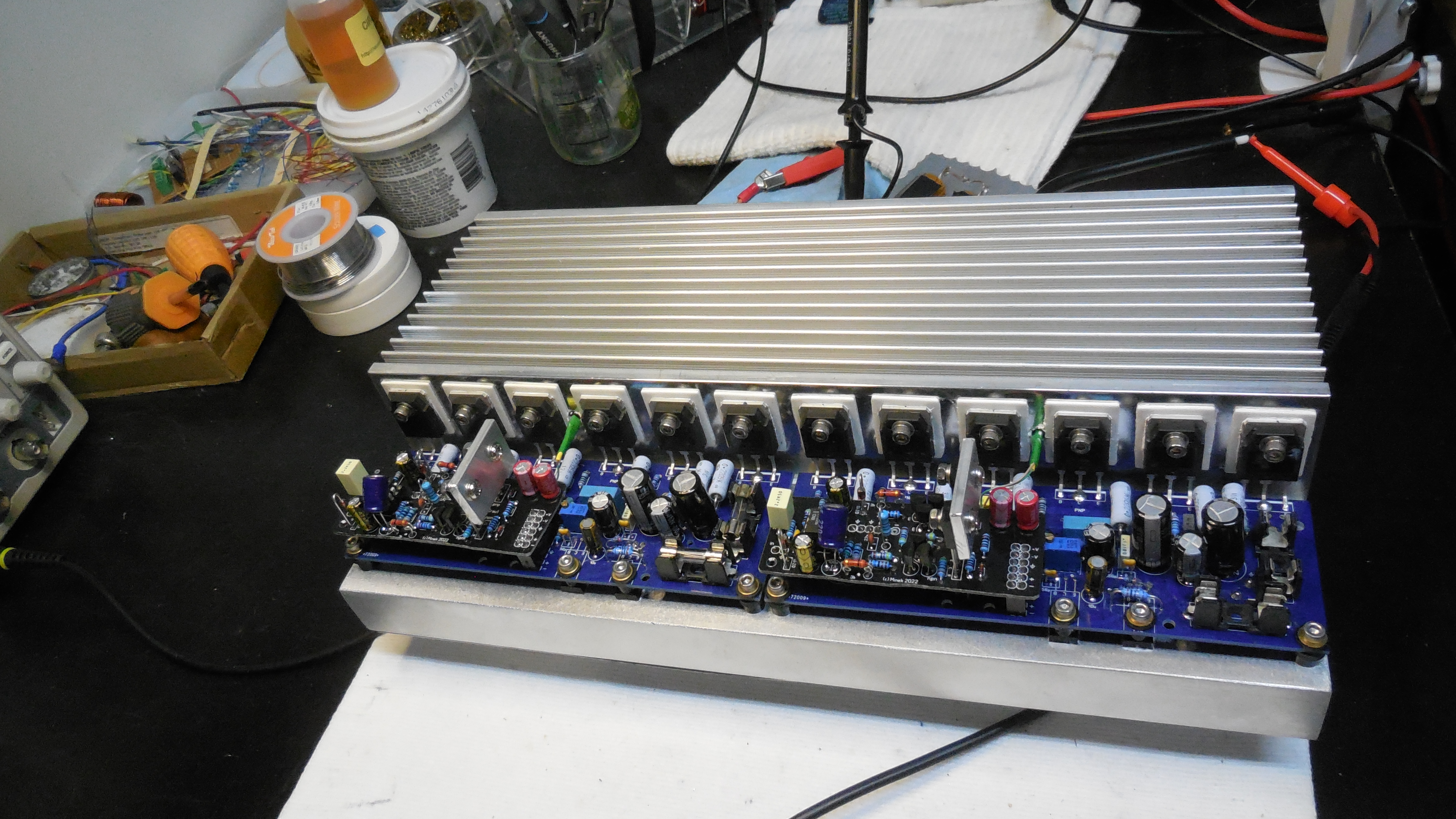

16. DSCN0777

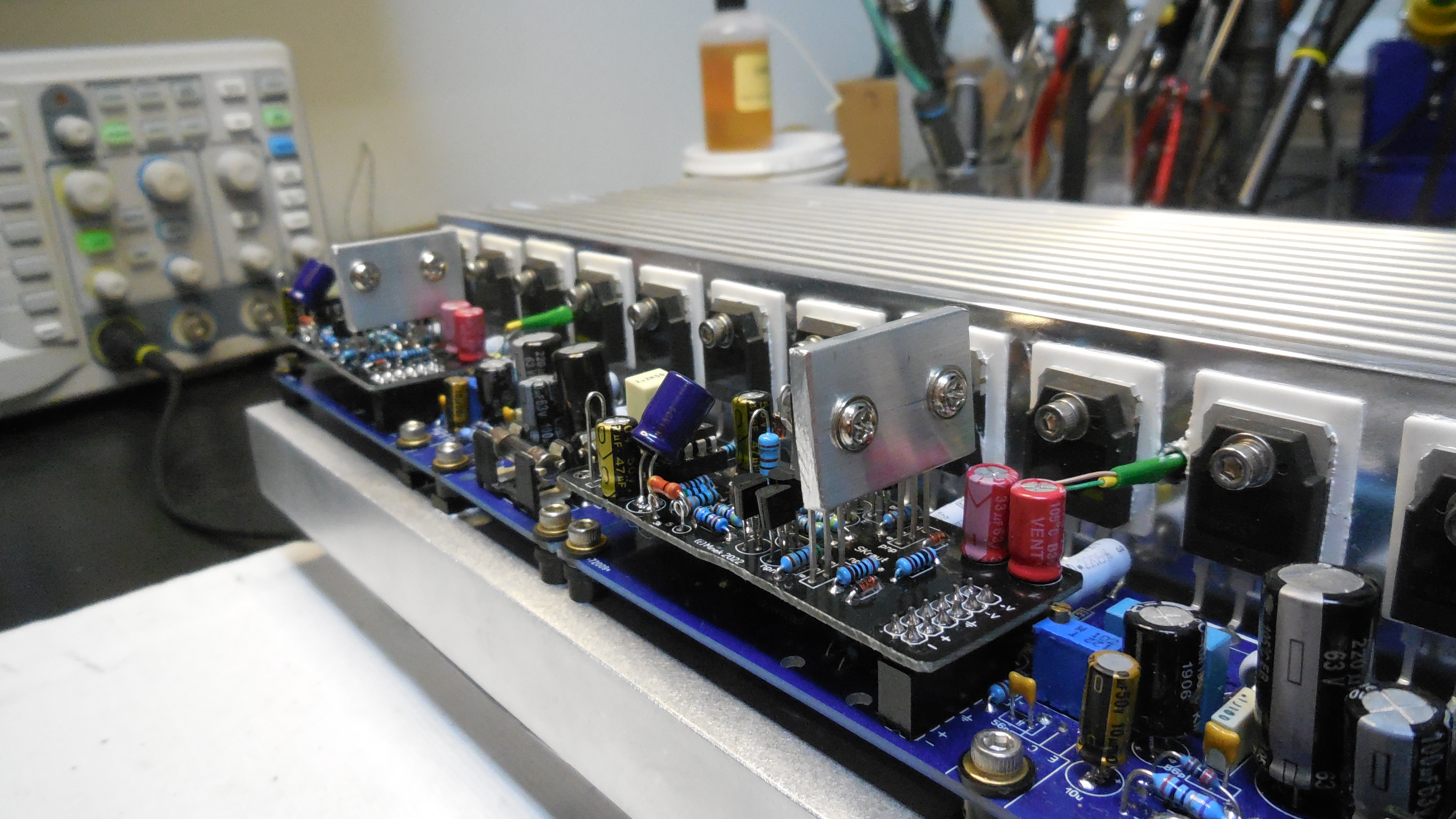

DSCN0775
17. DSCN0775 		DSCN0774

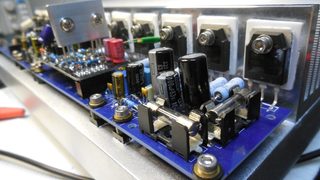

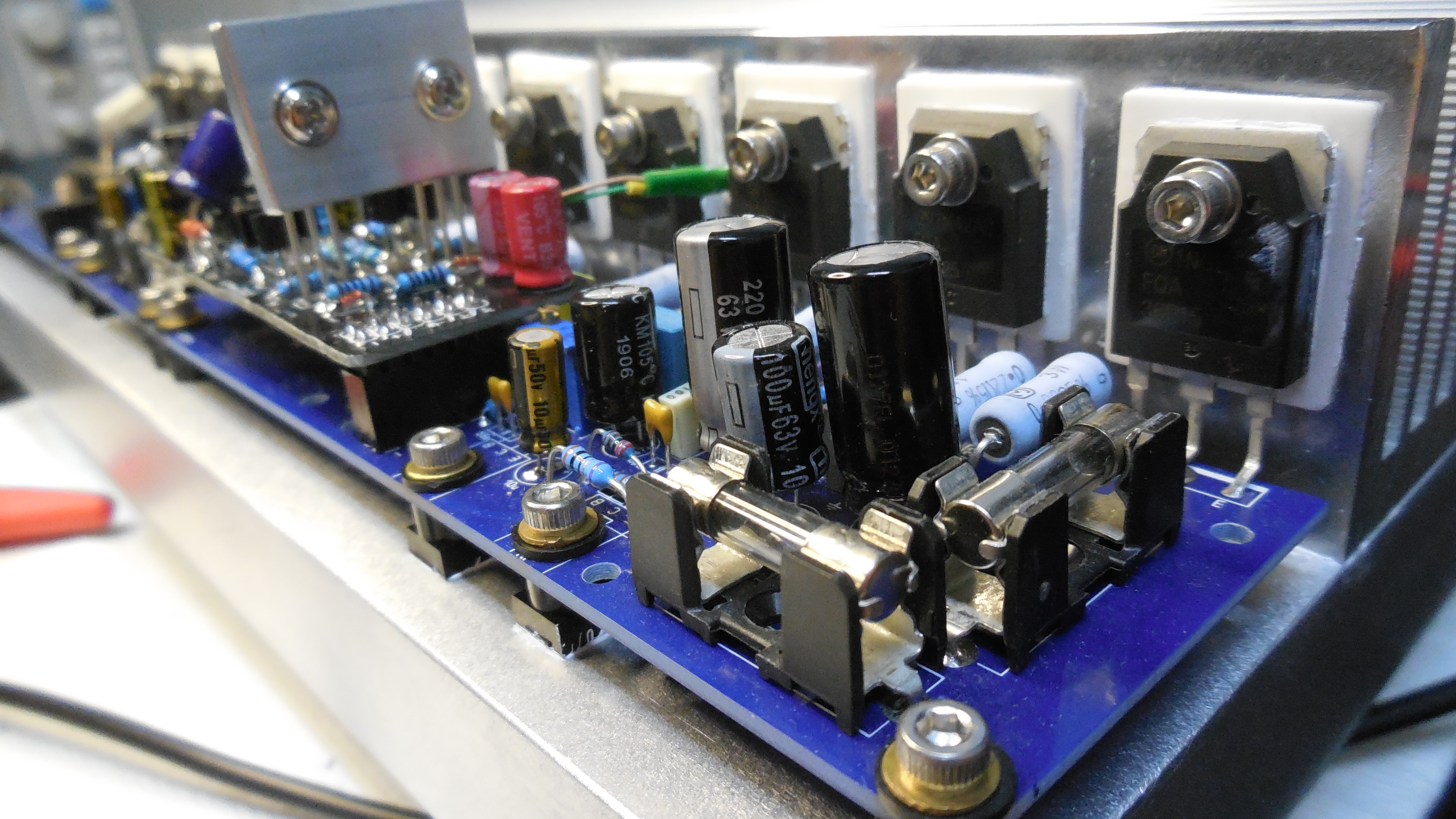

18. DSCN0774 		DSCN0773

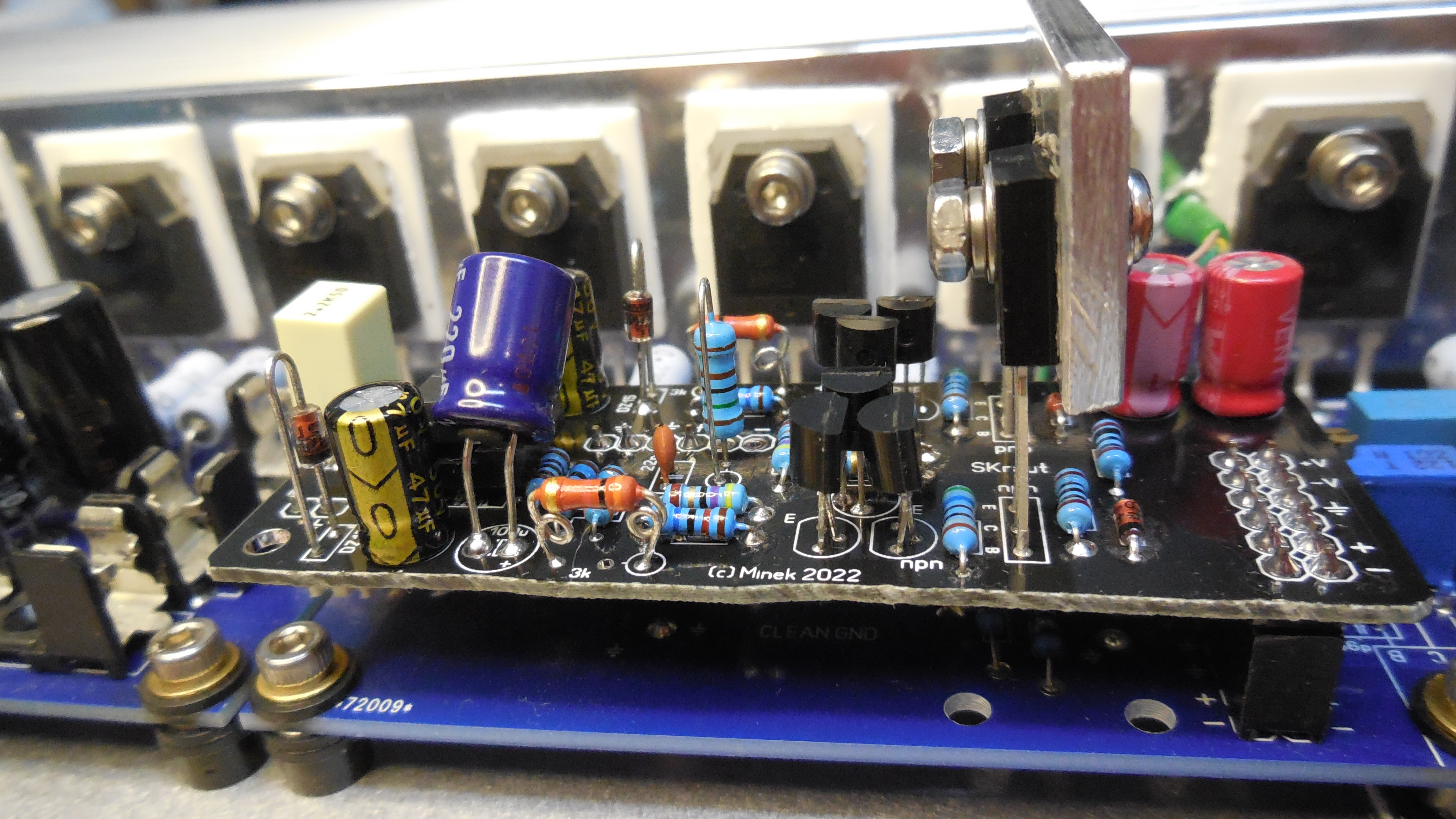

19. DSCN0773 		DSCN0771

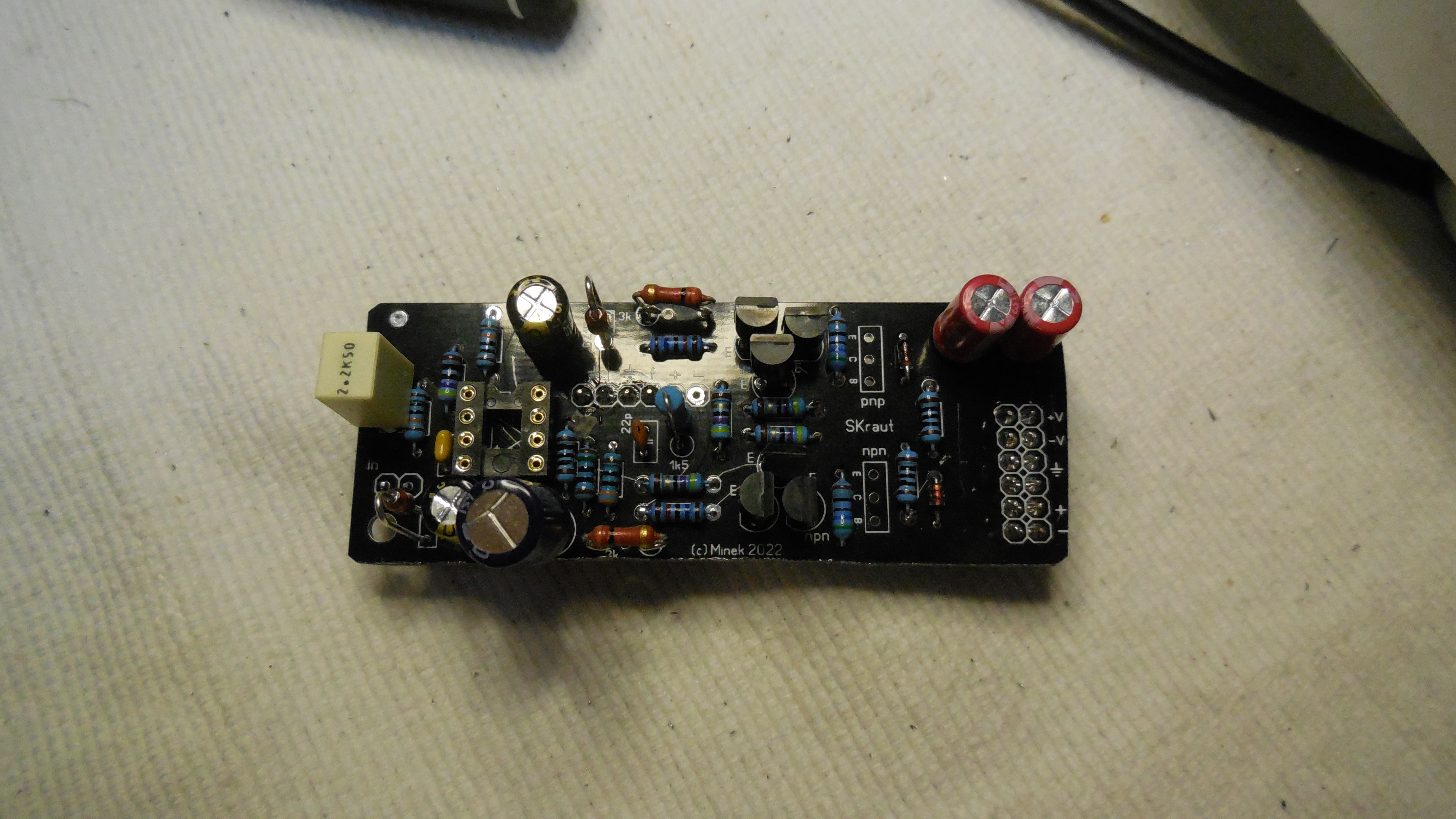

20. DSCN0771

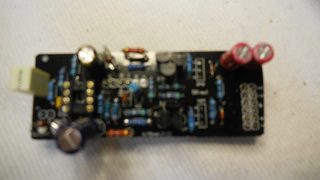

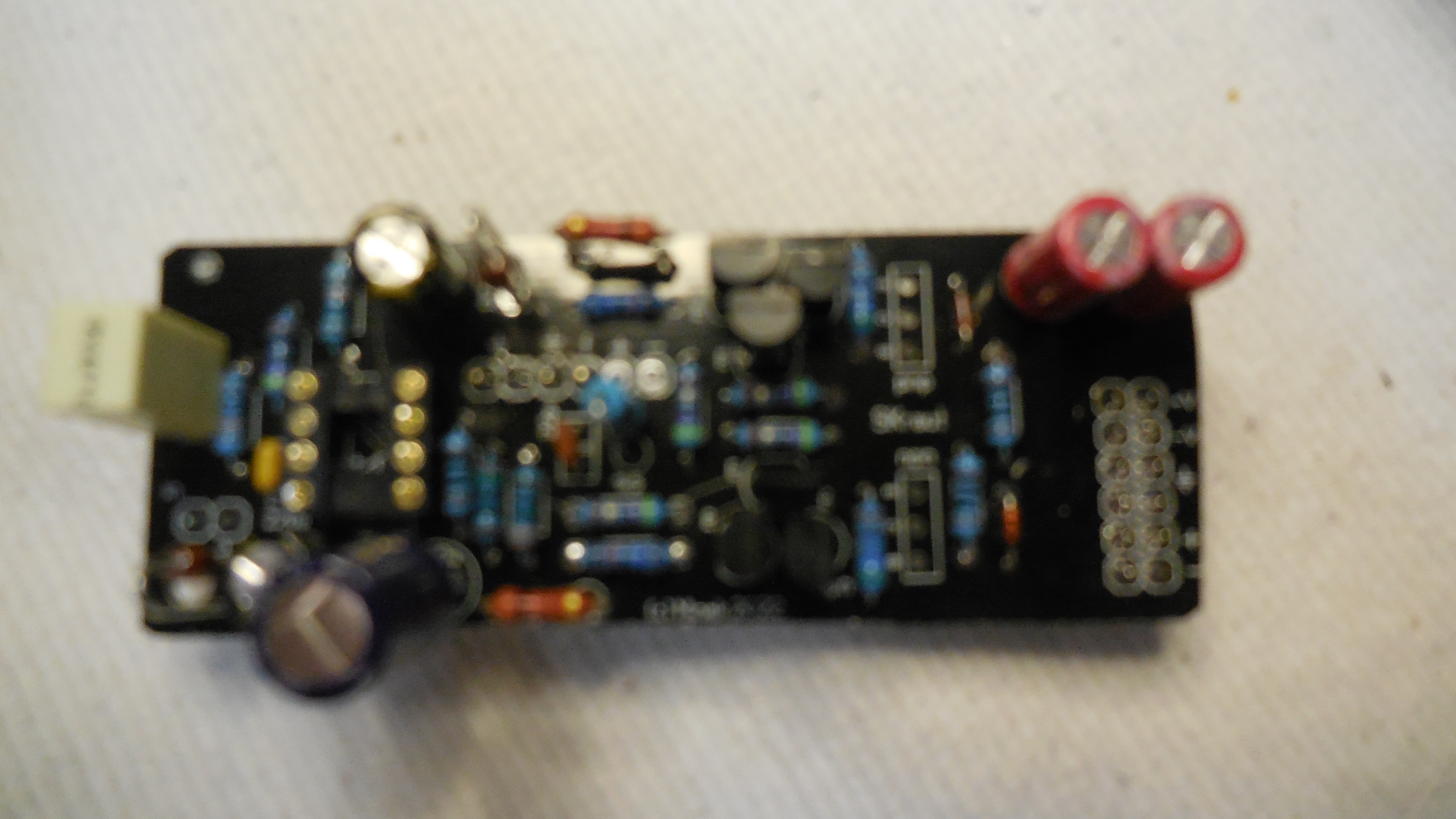

DSCN0770
21. DSCN0770 		DSCN0769

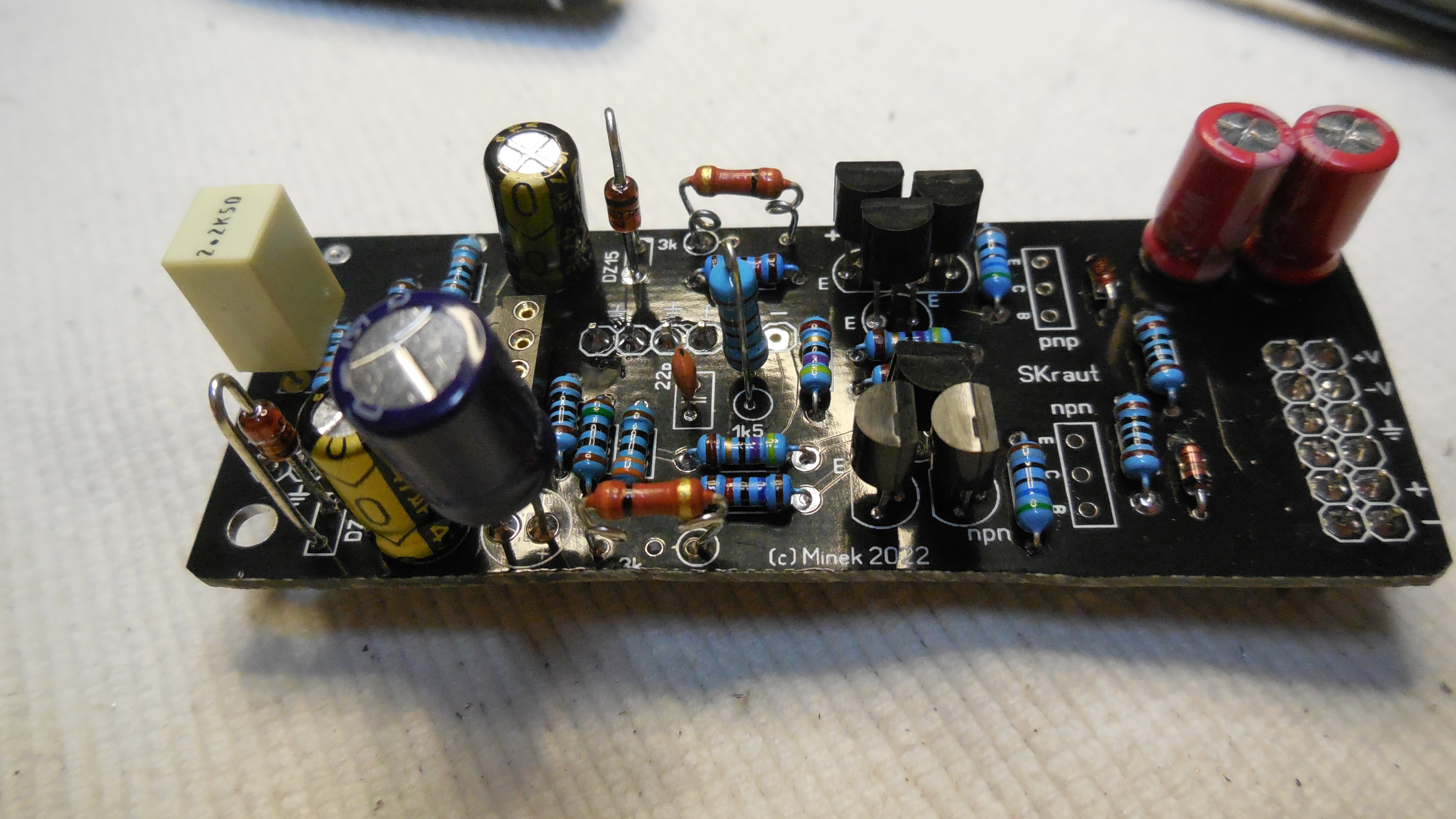

22. DSCN0769
