Speaker Protection Systems

2015-2020
StatusSupporting project
Circuit familyProtection / switching
Photographs23 full-size gallery images
Downloads16 local design and reference files

Project Notes

DC detection, delayed connection and solid-state speaker switching developed alongside the amplifiers. Schematics, PCB layouts, device data and built boards are collected here.

Photo Gallery

DSCN0762

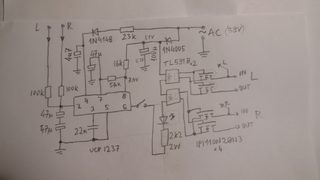

1. DSCN0762 		DSCN0767

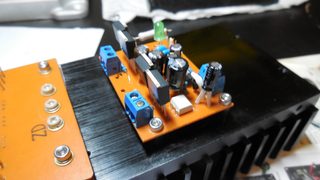

2. DSCN0767 		DSCN0761

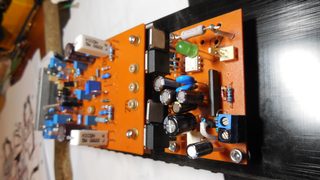

3. DSCN0761 		DSCN0763
4. DSCN0763

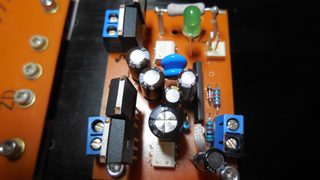

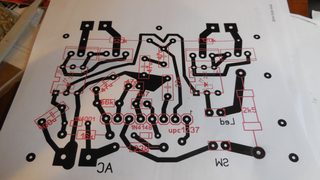

DSCN0764
5. DSCN0764 		DSCN0768

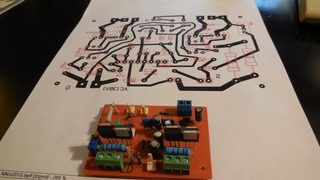

6. DSCN0768 		DSCN0769

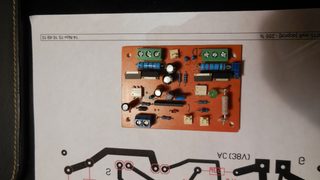

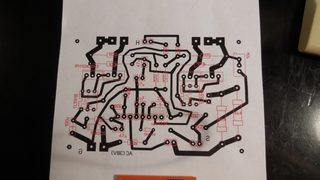

7. DSCN0769 		DSCN0770
8. DSCN0770

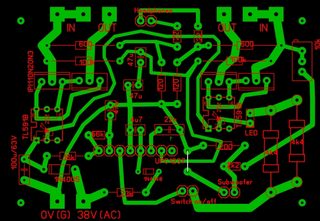

final board

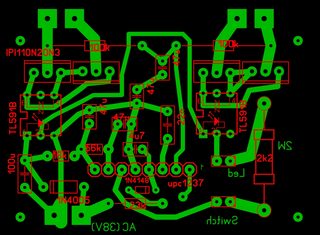

9. final board 		dc prot board

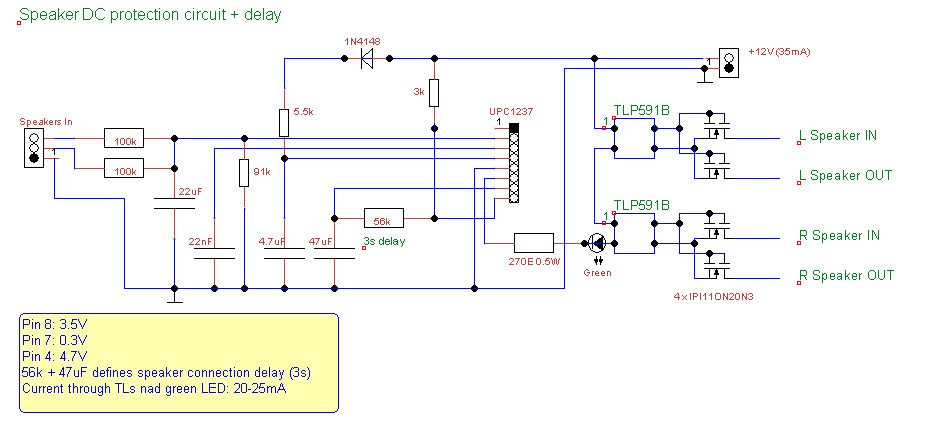

10. dc prot board 		speakers prot dc 12v mine
11. speakers prot dc 12v mine 		DSCN0765
12. DSCN0765

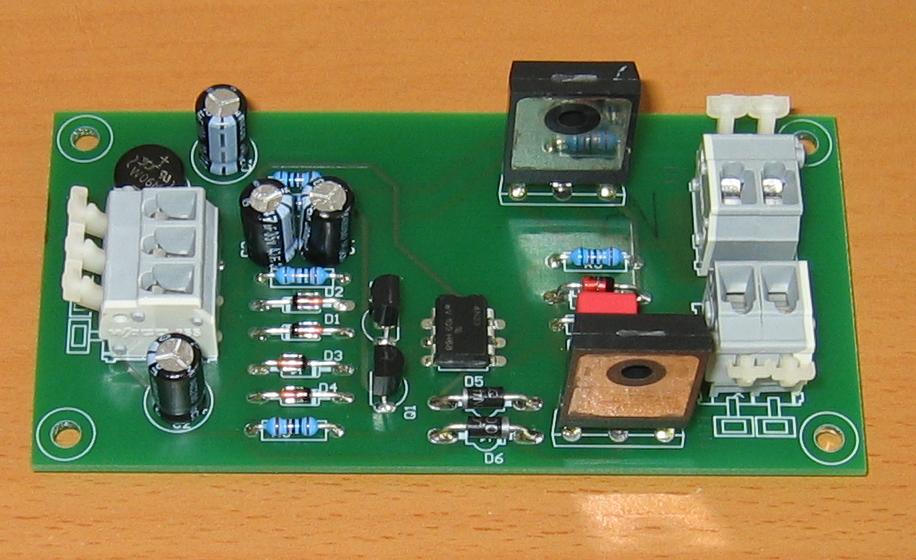

dc prot czech board

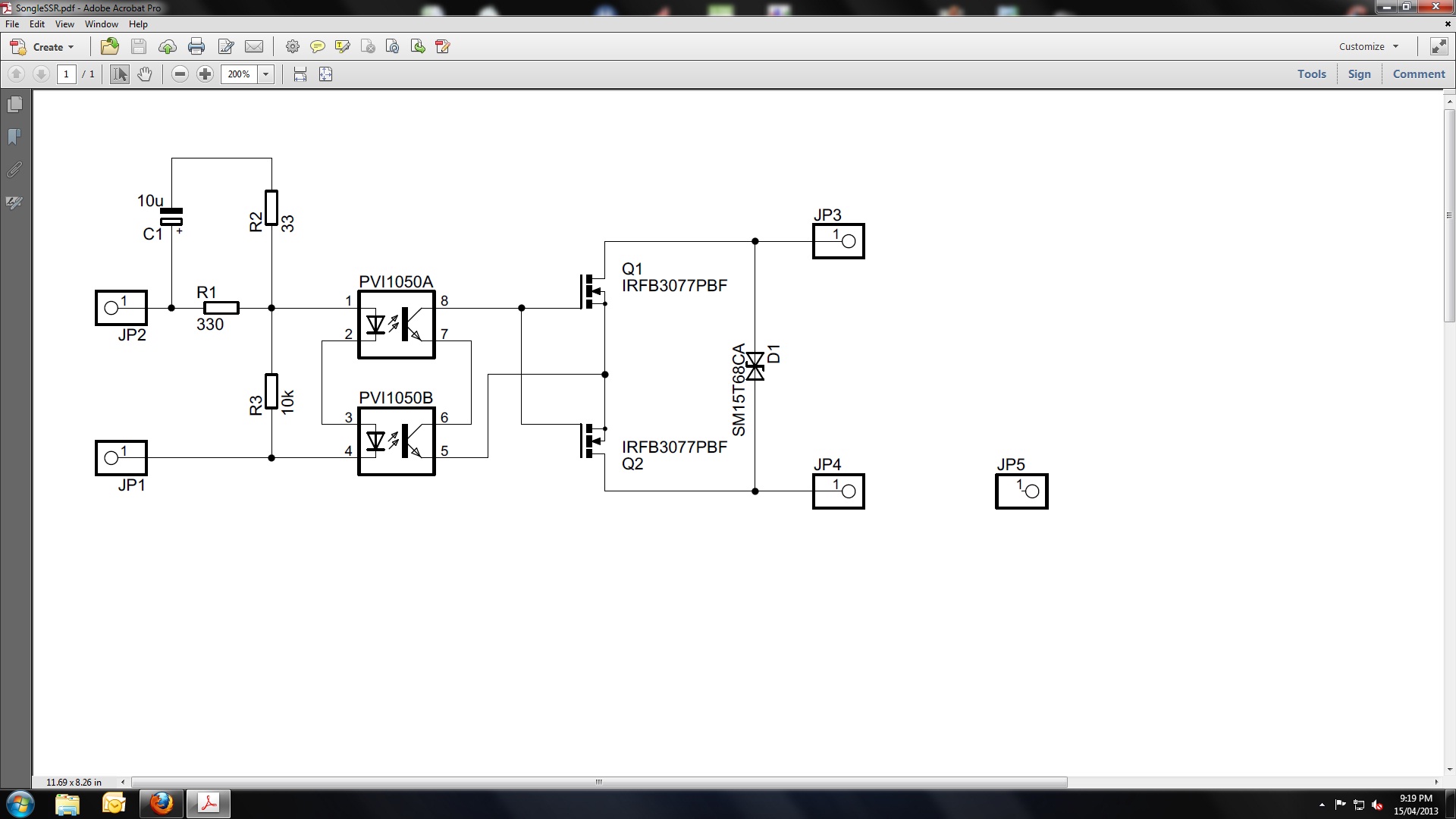

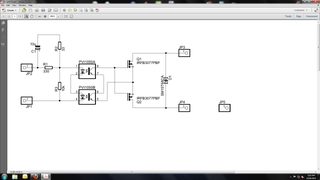

13. dc prot czech board 		Songledropin1

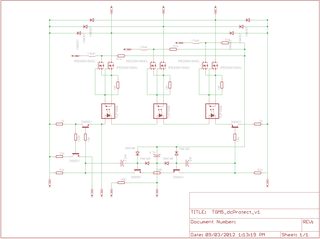

14. Songledropin1 		dc prot tgm5

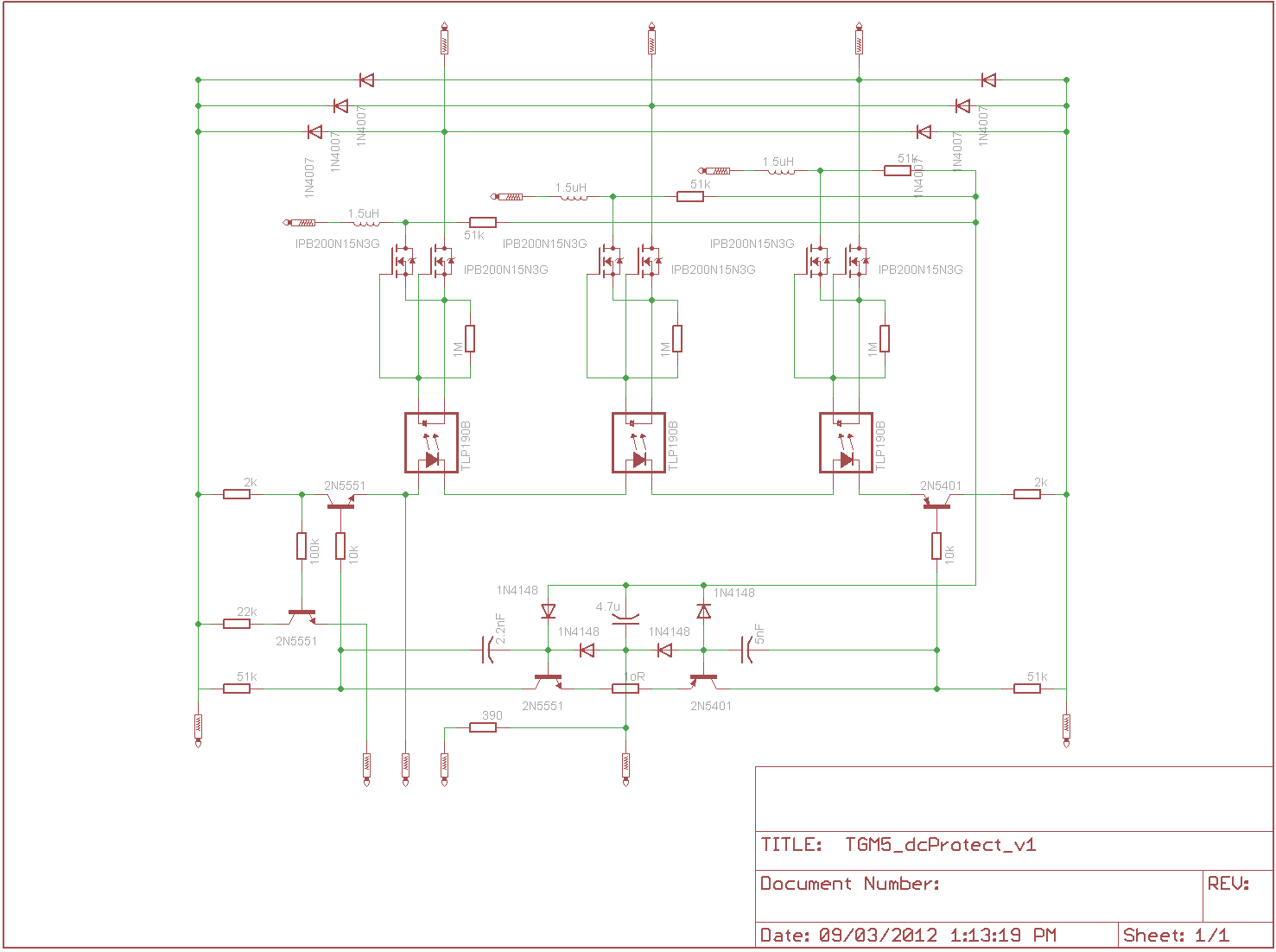

15. dc prot tgm5 		TLP3914 Turn Off

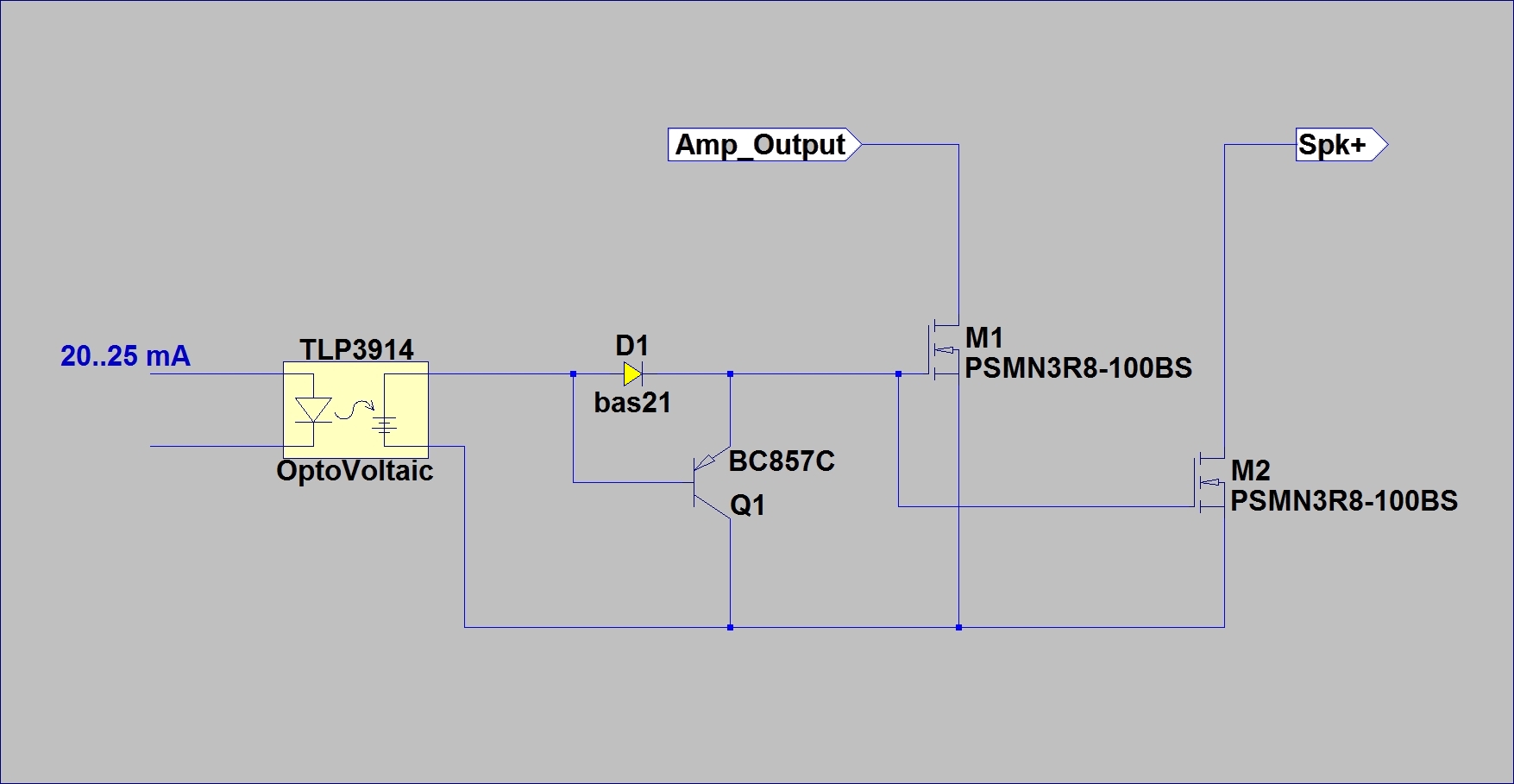

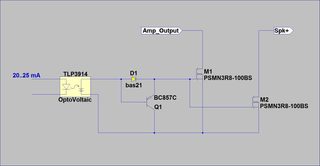

16. TLP3914 Turn Off

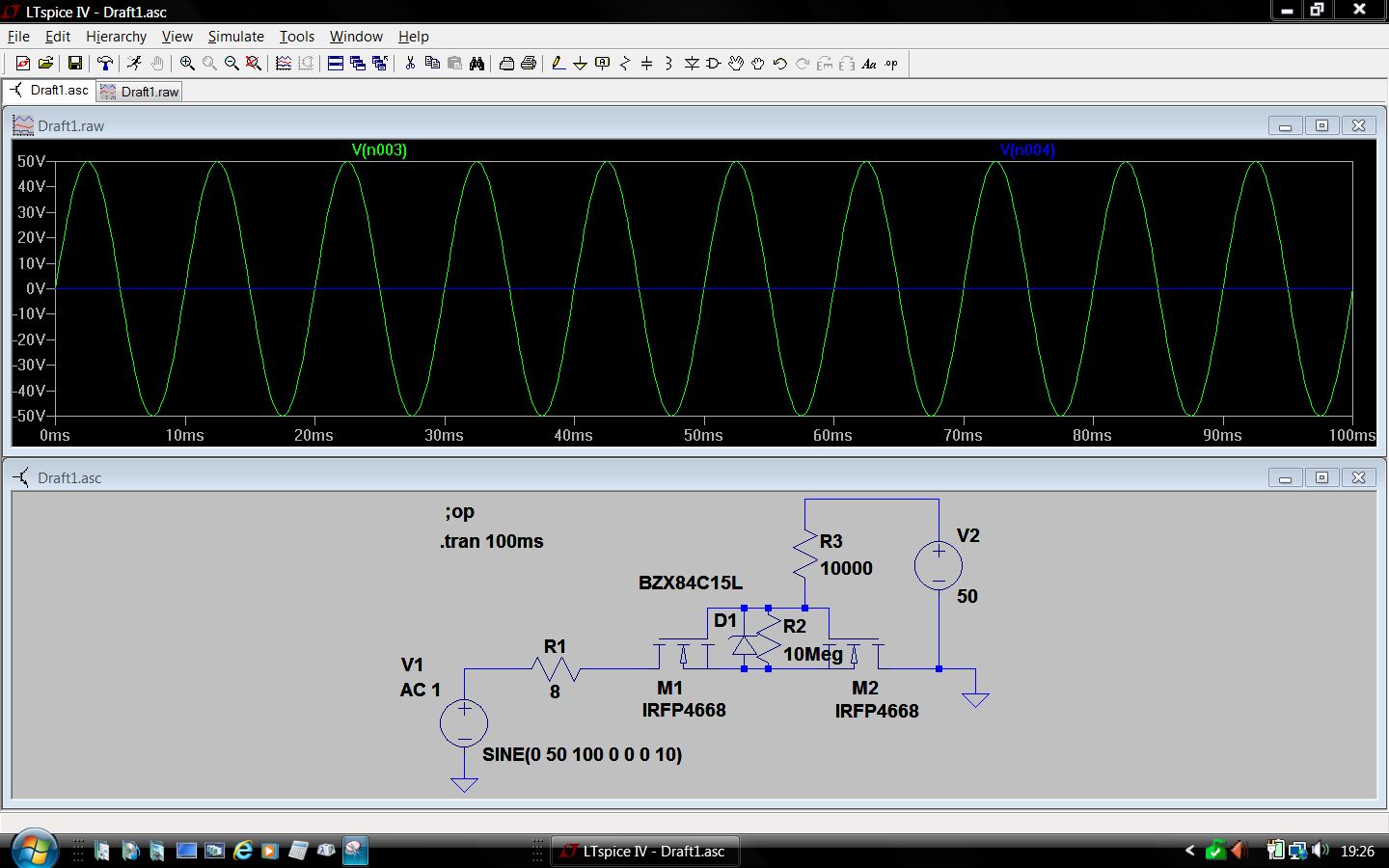

mooly protect Switch On

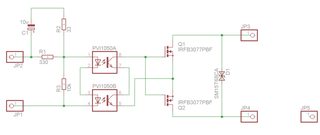

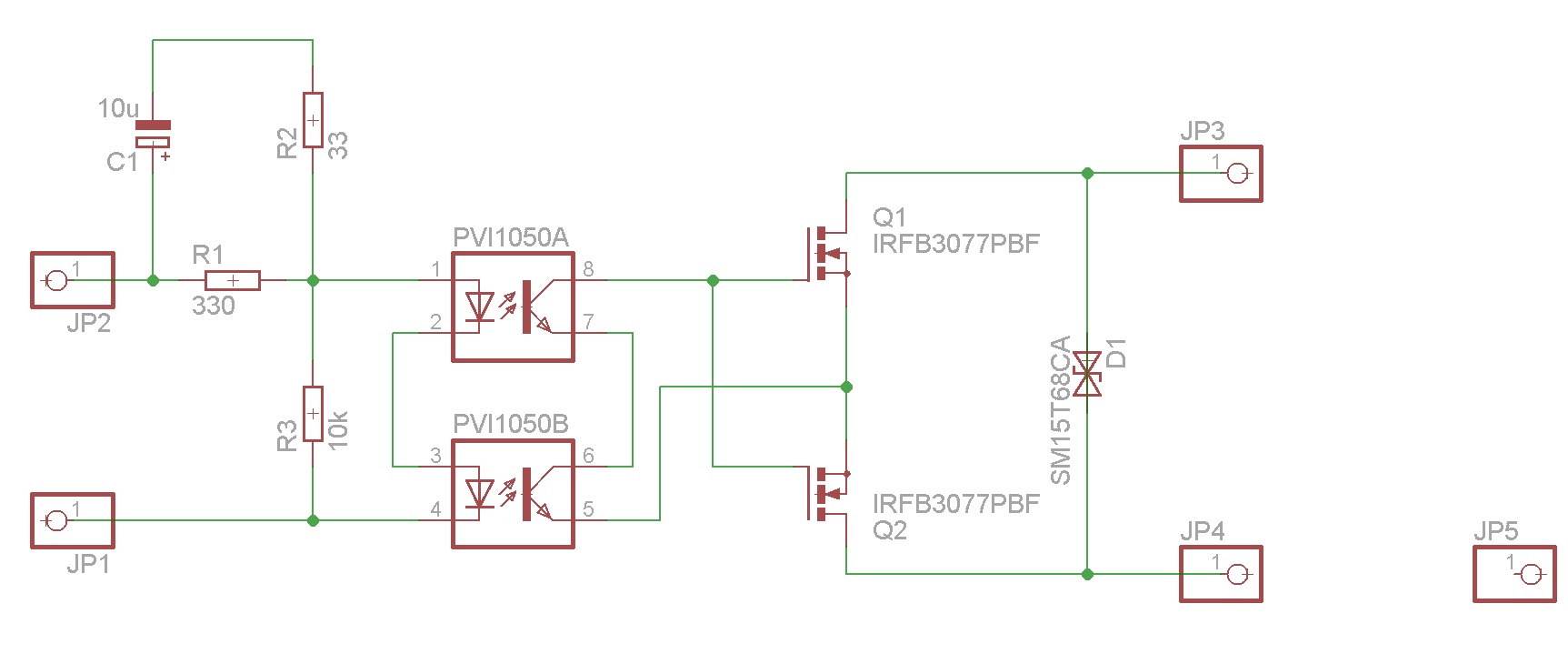

17. mooly protect Switch On 		SSR

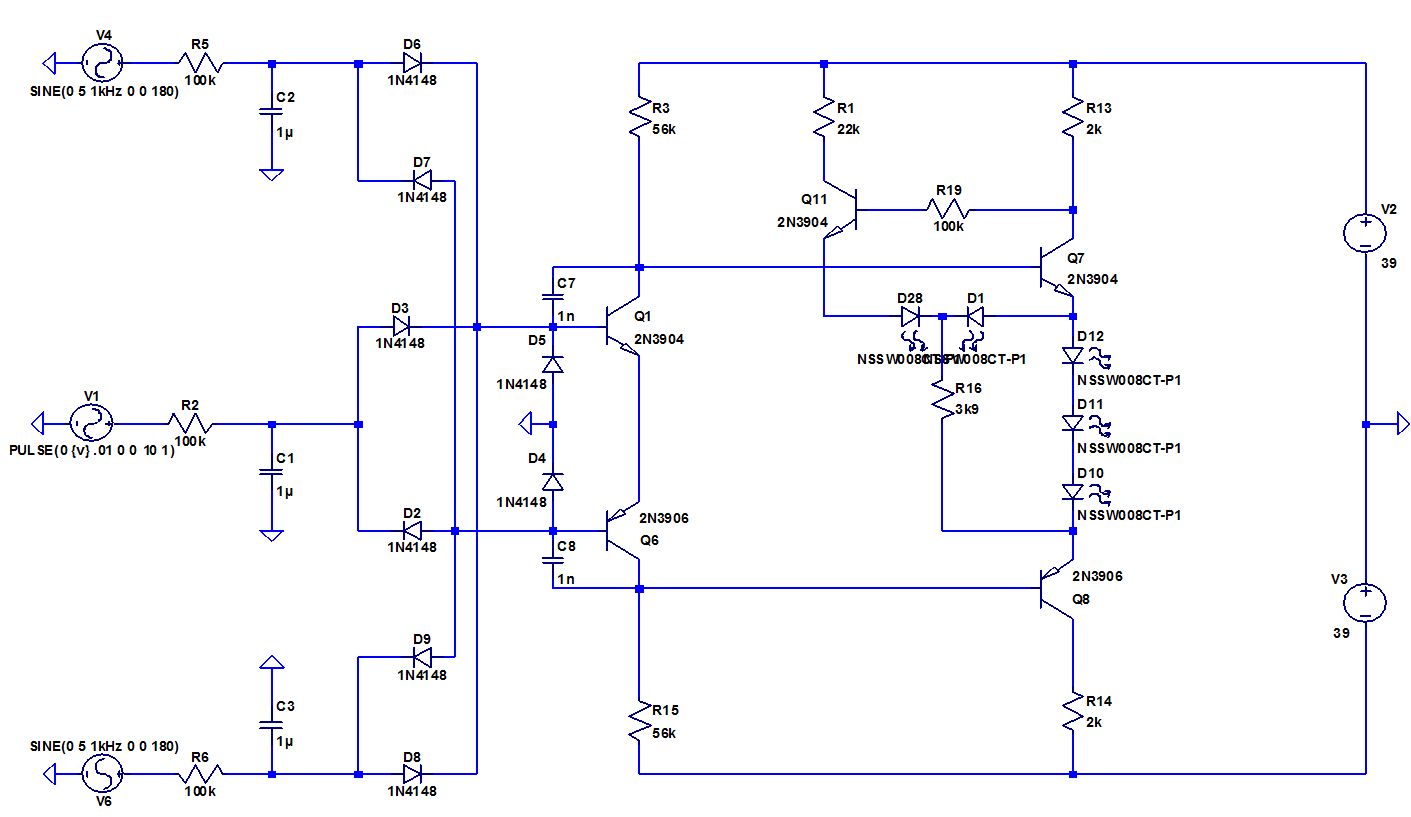

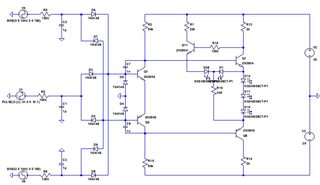

18. SSR 		dcProtect
19. dcProtect 		Elvee speaker prot ASPv2

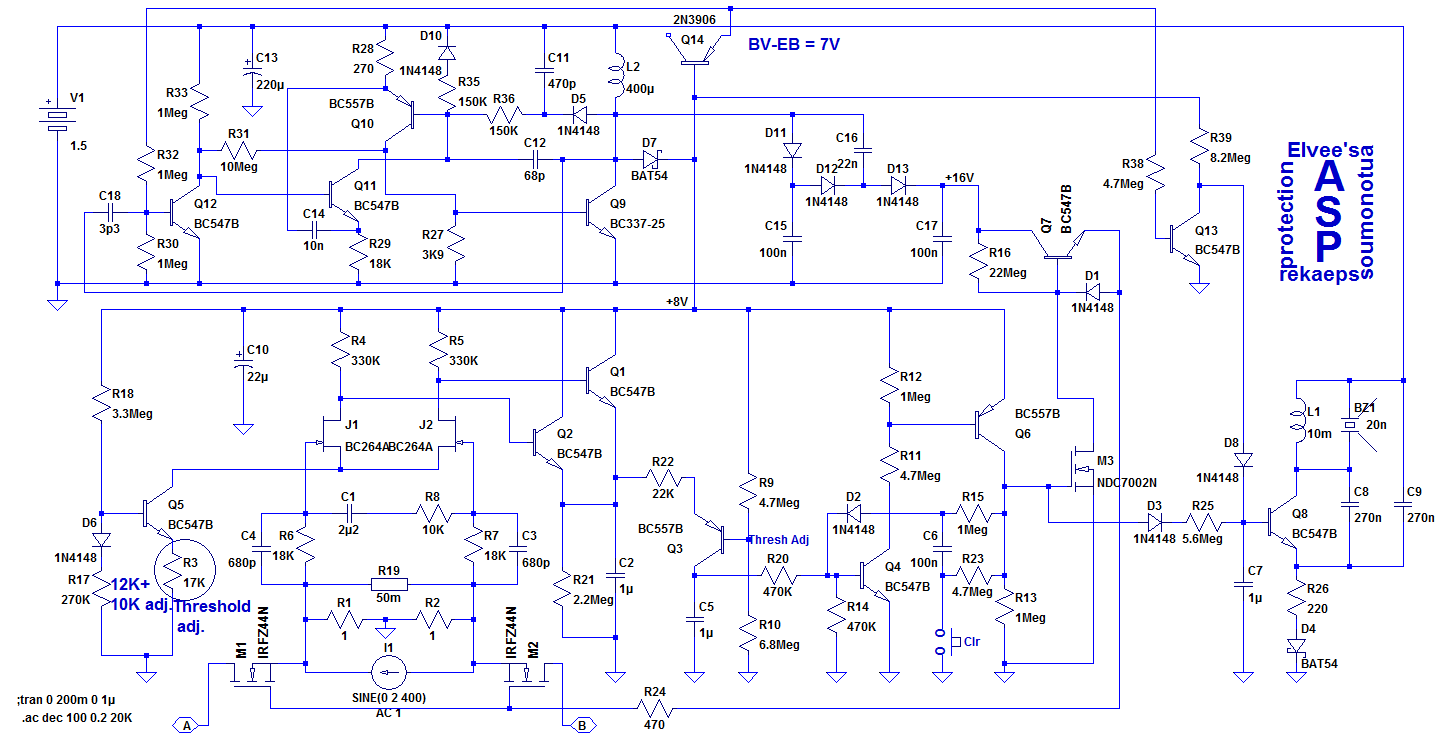

20. Elvee speaker prot ASPv2

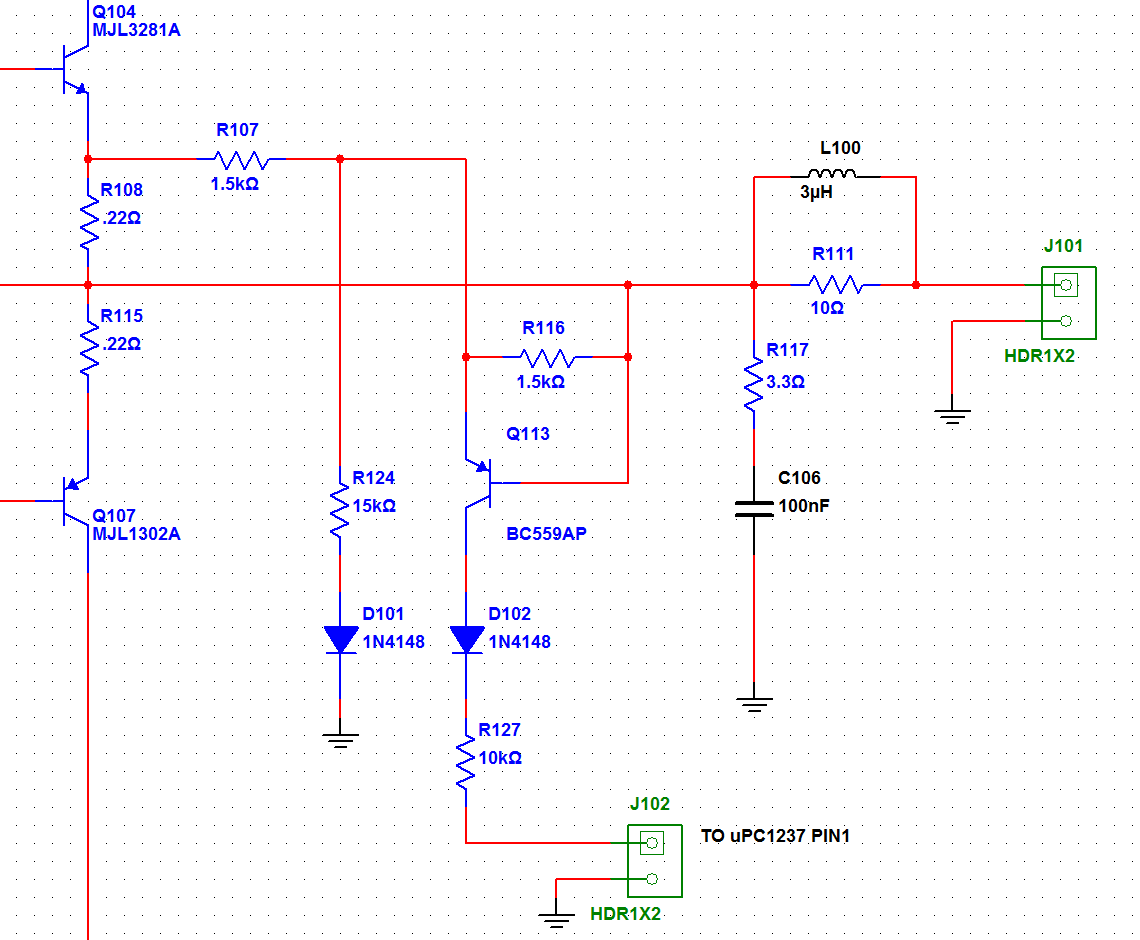

uPC1237 current sense circuit protection

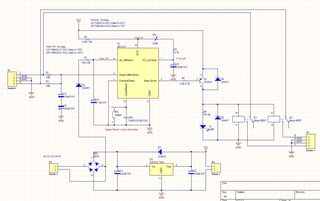

21. uPC1237 current sense circuit protection 		PTG 1

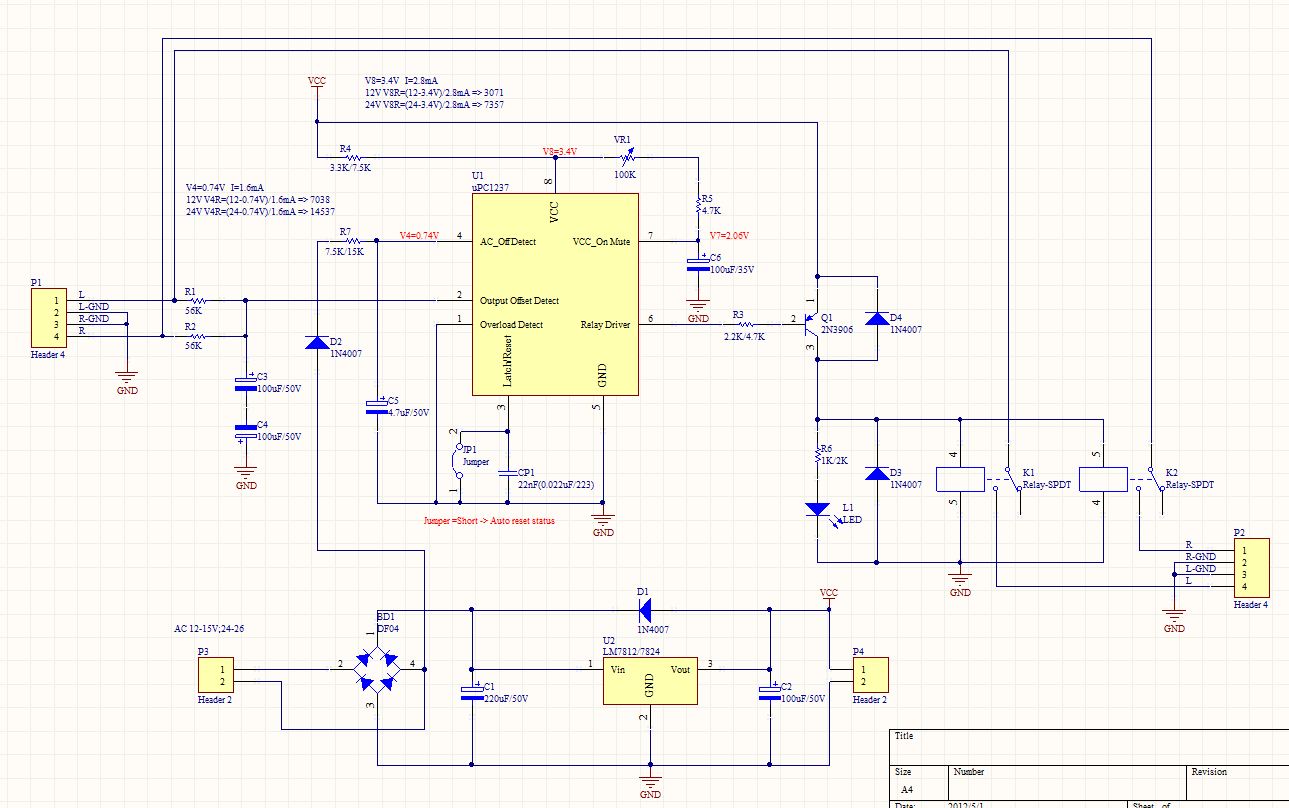

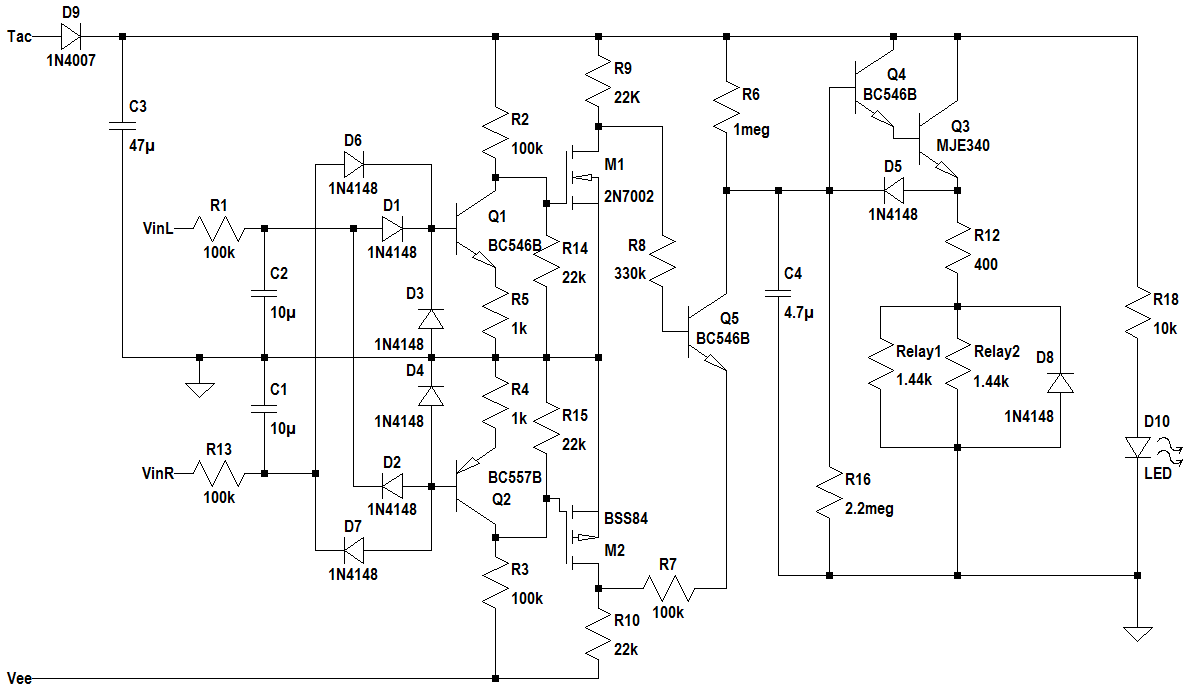

22. PTG 1 		Startup and DC protection
23. Startup and DC protection
